Driver's Air Outlet, Removing

Driver's Air Outlet (Golf And Jetta), Removing

First do the following:

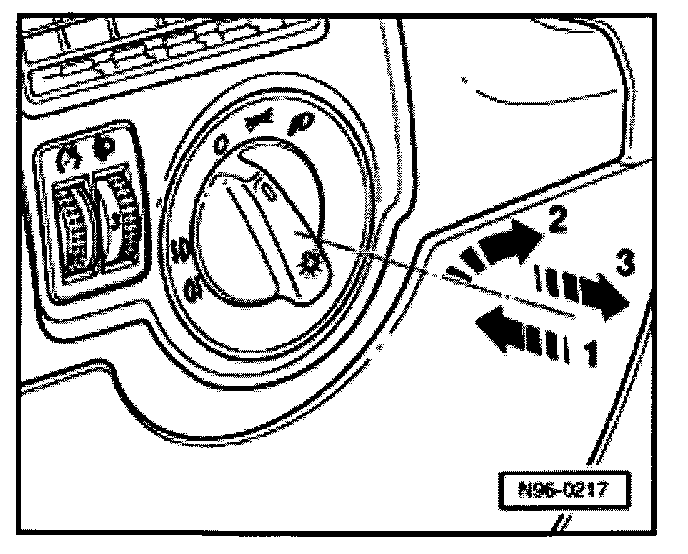

- Turn (light switch) rotary switch to "0" position.
- Press rotary part inward -1- and turn slightly to right -2-
- Hold rotary part in this position and pull light switch out -3-.
- Disconnect electrical connection.

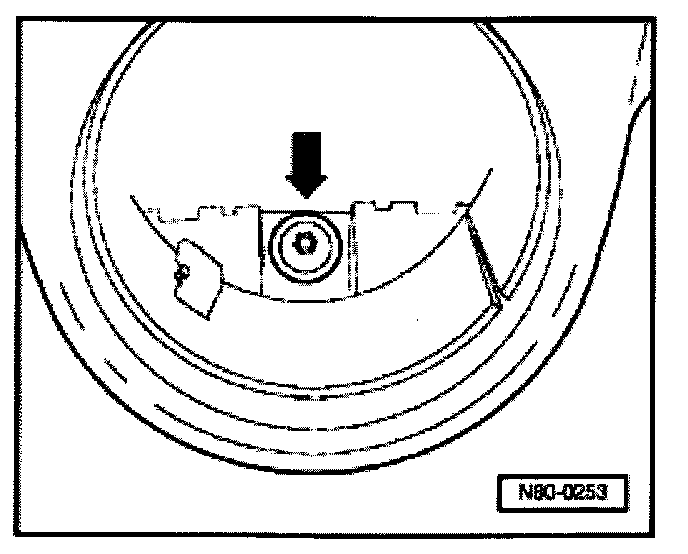

- Remove screw -arrow-.
- Pull out air outlet

Jetta only:

- Remove glove box
- Disconnect electrical connection for air outlet illumination.
