Overhaul

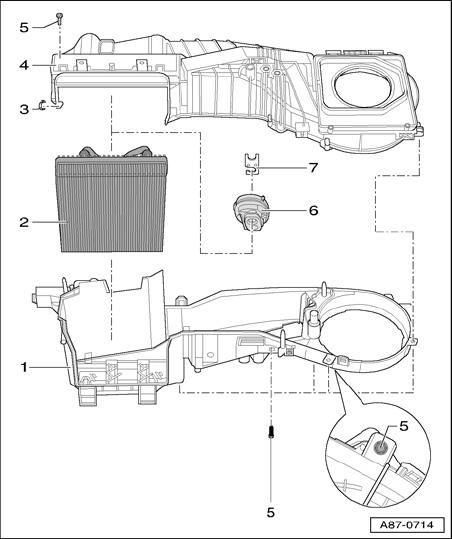

Evaporator Housing, Disassembly And Assembly

- Separate evaporator housing from heating and A/C unit.
- Disconnect electrical connections from heating and A/C unit.







1. Evaporator housing - lower section
2. Evaporator
- Ensure insulation foam is not damaged

3. Clip
4. Evaporator housing - lower section
5. Screw
6. Expansion valve / bulkhead seal
7. Bracket
