Measurement Check

Measurement check

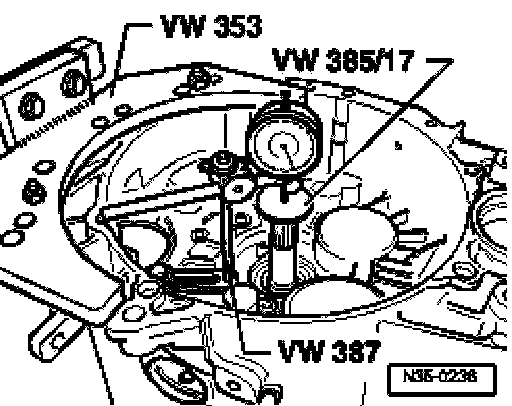

^ Install measuring appliance and dial gauge
^ Rotate input shaft so that tapered roller bearings settle.
^ Press input shaft in direction of dial gauge.
^ Bearing play should be minimum 0.015 to maximum 0.100 mm.
