Bulb Holder, Removing and Installing

Bulb holder, removing and installing

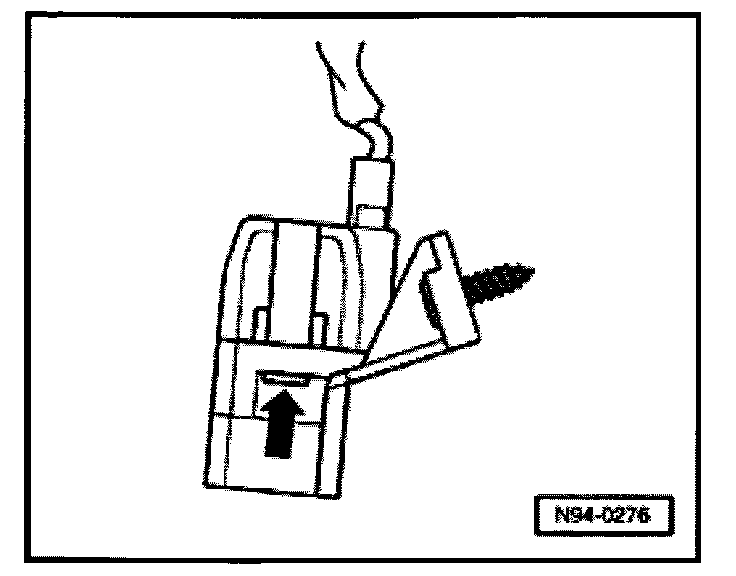

- Unclip bulb housing at both short sides -arrow-.

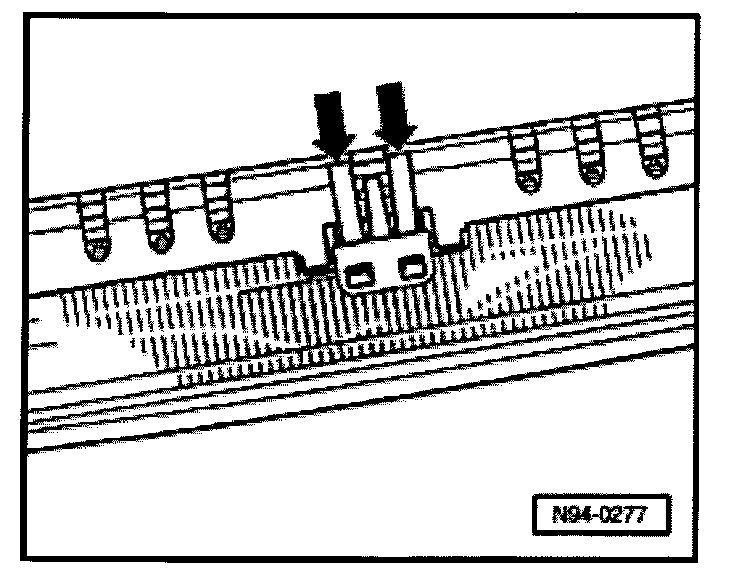

- Unclip bulb holder on both long sides - arrows-.


NOTE: The bulb holder base plate contains soldered- in light emitting diodes (LEDs) that are not replaceable. In the event of LED malfunction, replace complete bulb holder.


Install in reverse order of removal.
