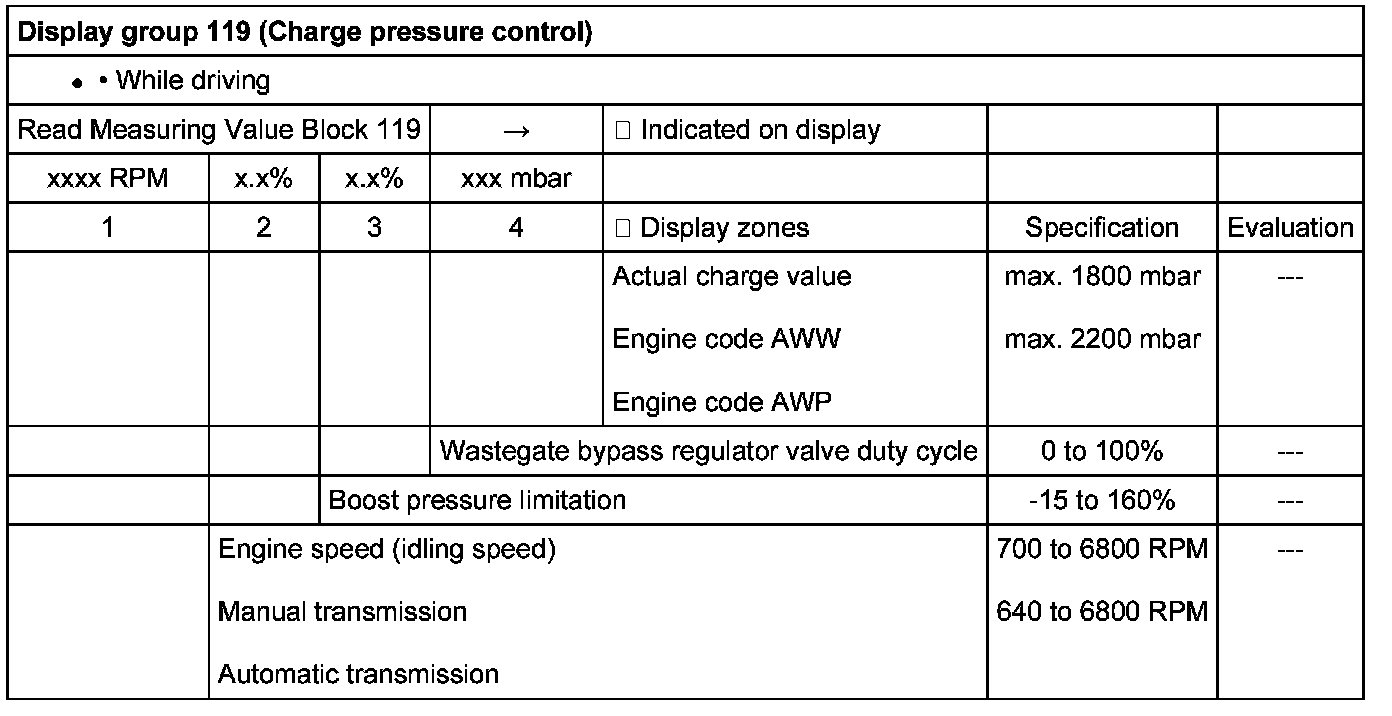

Display Groups 110 to 119 (Charge Pressure Control)



Measuring Value Blocks, Evaluating Display Groups 110 To 119 (Charge Pressure Control)

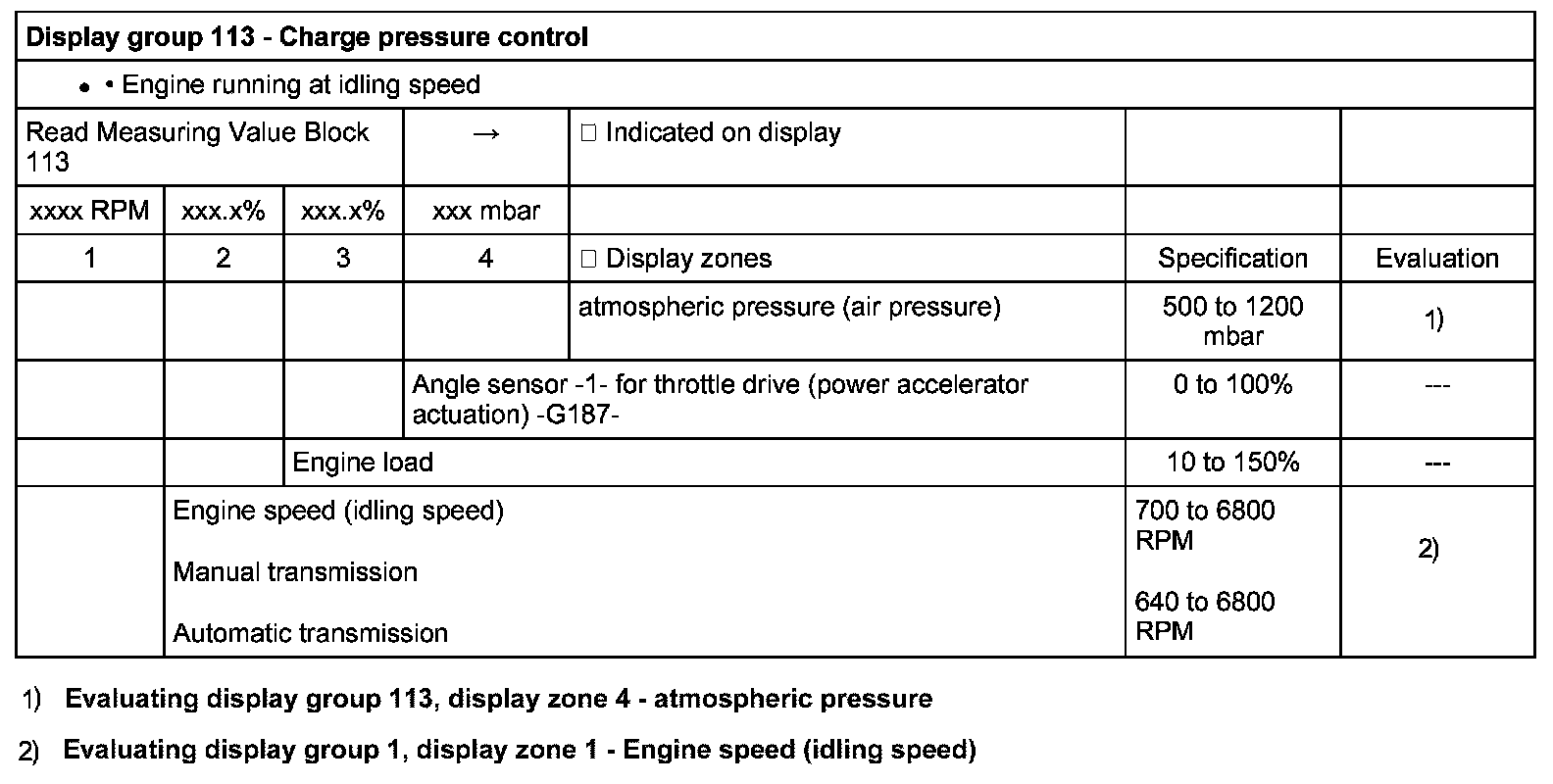

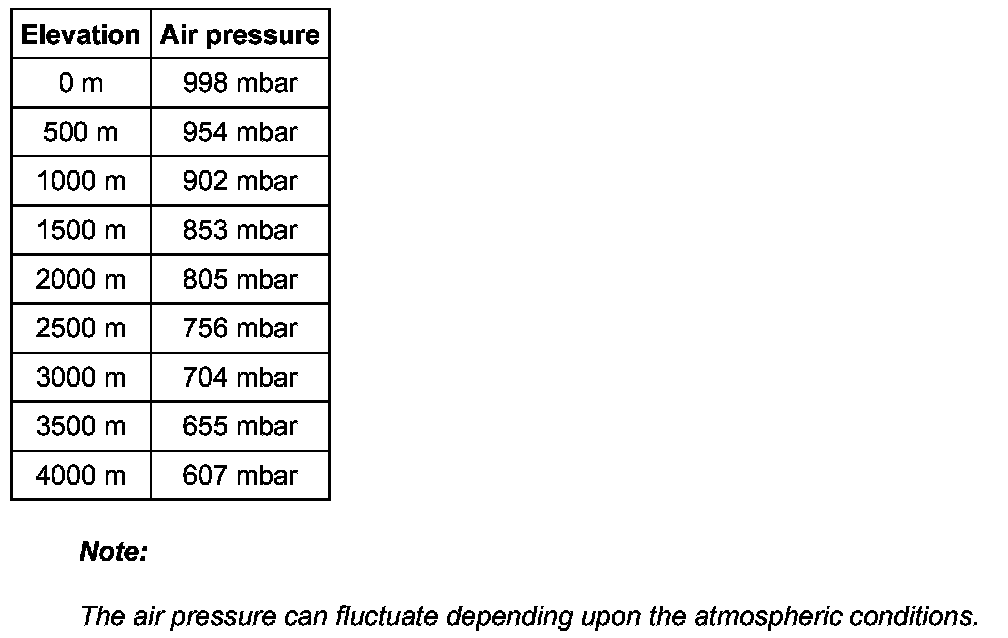

Evaluating display group 113, display zone 4 - atmospheric pressure
