EGR Vacuum Line

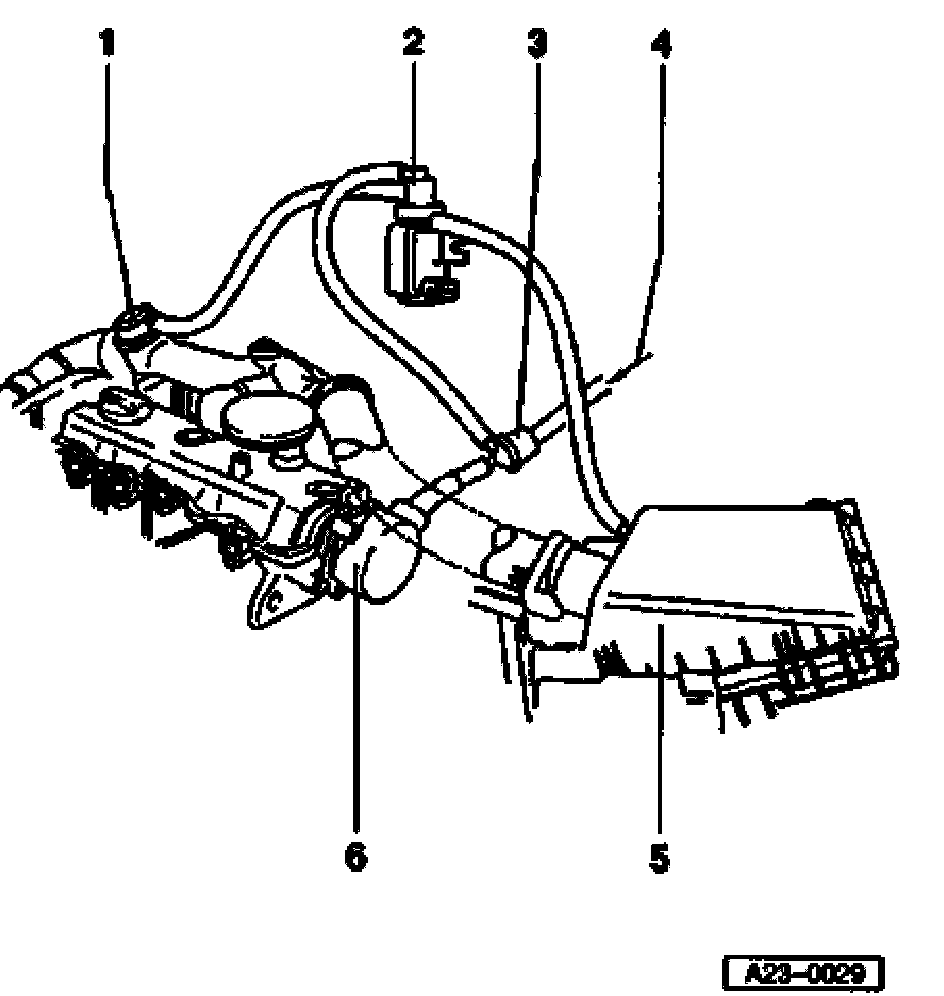

Vacuum hose connections, diagram
1. EGR valve
2. EGR Vacuum Regulator solenoid valve - N18
3. Check valve
4. Brake servo
5. Air Cleaner
6. Vacuum pump
