Valve Guide: Testing and Inspection

Valve guides, checking
Special tools and equipment

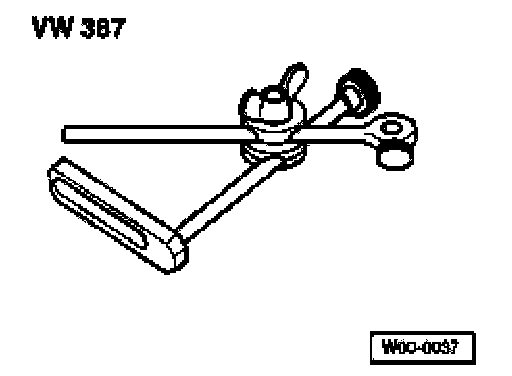

^ VW387 Universal dial gauge bracket
^ Dial gauge





Test sequence

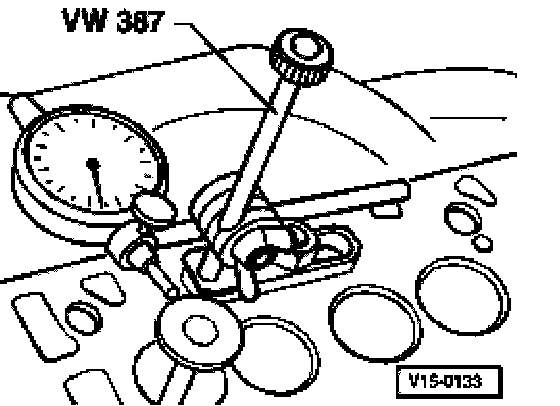

- Insert new valve into guide until end of valve stem is flush with end of guide. Due to slight differences in stem dimensions, make sure that an intake valve is used in intake guide and an exhaust valve in exhaust guide.
^ Rock: 1.3 mm maximum
