Ribbed Belt, Removing and Installing (Diesel Engine)

Ribbed Belt Tensioner, Removing and Installing


Work Sequence


- Remove right-hand insulation tray: Refer to "Body and Frame : Sound Proofing/Insulation" Sound Proofing / Insulation

- Remove pipe between charge air cooler and turbocharger.

- Mark engine direction of rotation on ribbed belt.

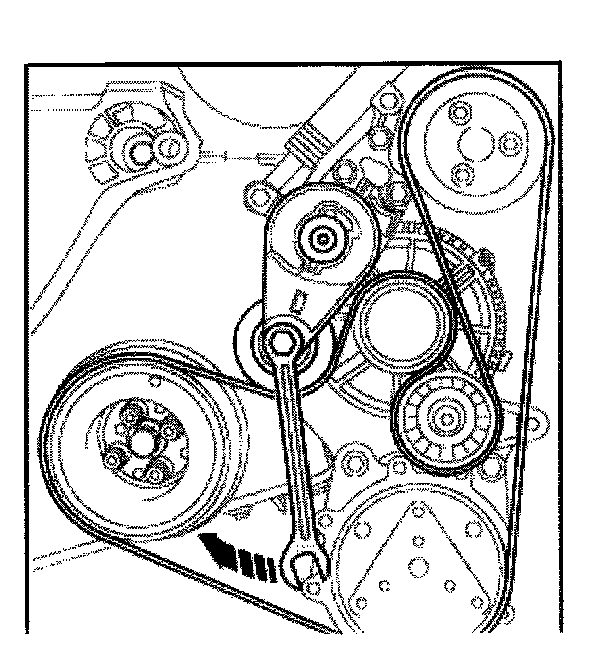

- Swing tensioning roller in direction of arrow using 15 mm open end wrench on tensioning lever.

- Remove or install ribbed belt.


Note:
Vehicles without A/C: first remove V-belt from Generator and position it last when installing.

Vehicles with A/C: first remove V-belt from pulley and position it last when installing.

When installing V-belt: make sure belt sits correctly in pulley.

Ribbed Belt, Routing

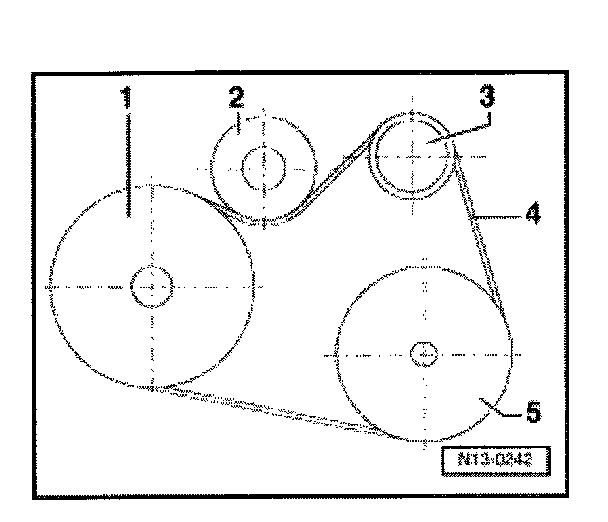

Belt Drive without A/C Compressor

Drive Belt Routing Without A/C:

1 - Vibration damper/pulley
2 - Tensioner
3 - Pulley - Generator
4 - Ribbed belt
5 - Pulley - Power steering pump

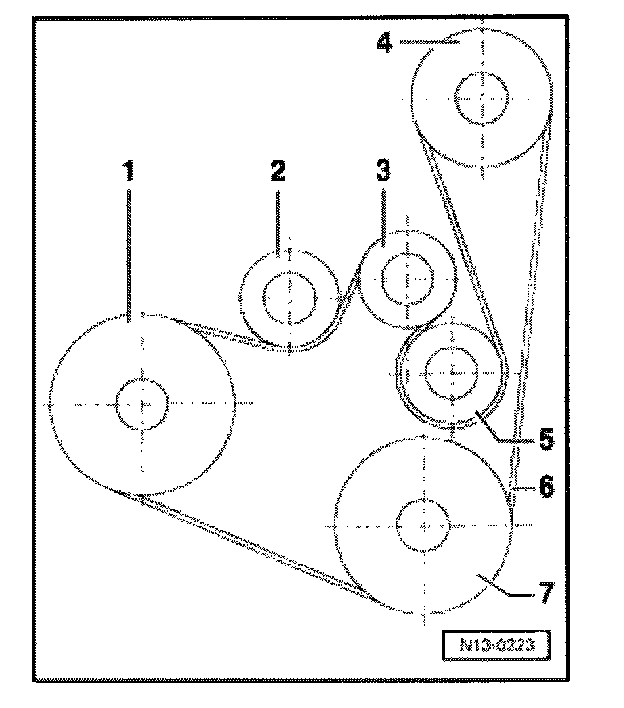

Belt Drive with A/C Compressor

Drive Belt Routing With A/C:

1 - Vibration damper/pulley
2 - Tensioner
3 - Pulley - Generator
4 - Pulley - Power steering pump
5 - Tensioner
6 - Ribbed belt
7 - Pulley - AC
