Fuel Tank Pressure Release Valve: Testing and Inspection

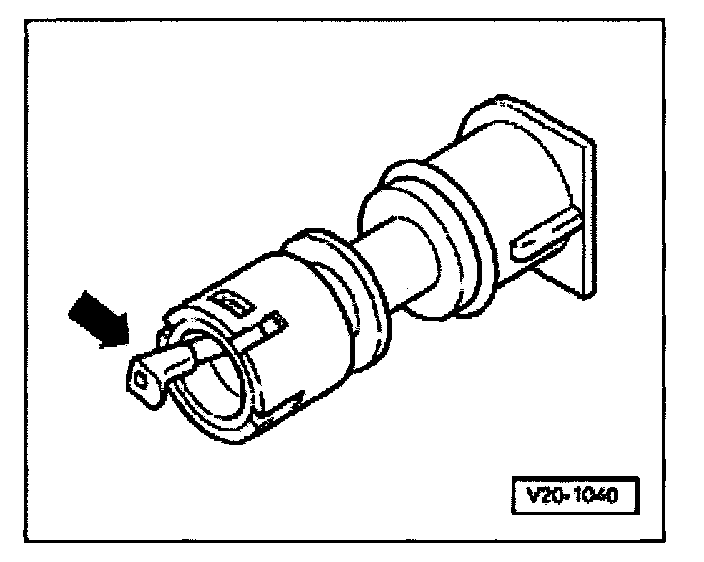

Vent valve, checking







- Lever in rest position: Closed
- Lever pushed in direction of arrow: Open


NOTE: Remove fuel tank sealing cover before installing vent valve.
