Transmission Mount: Service and Repair

Engine and transmission assembly, mountings
Tightening torques

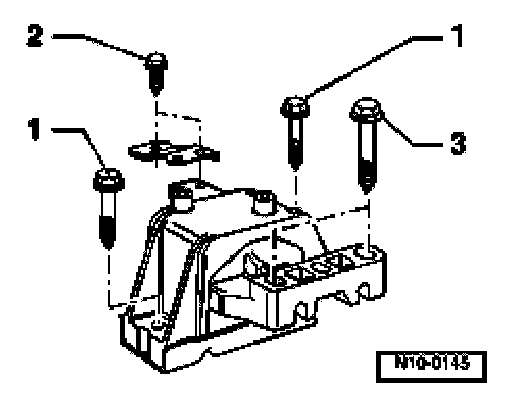

Front engine/transmission mount
1. Mount to body 1)
40 Nm (30 ft. lbs.) + 90° (1/4 turn.)
2. Mount/bracket to body
25 Nm (18 ft. lbs.)
3. Mount to engine bracket 1)
60 Nm (44 ft. lbs.) + 90° (1/4 turn.)
1) Replace bolts

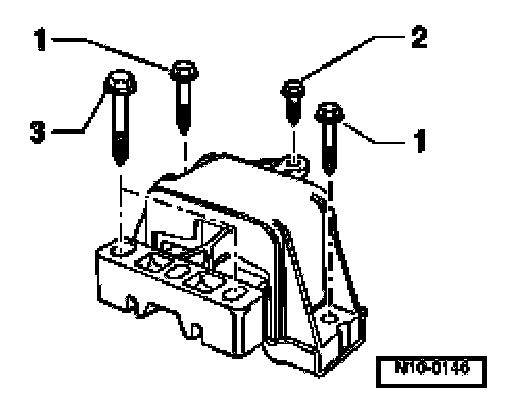

Right rear engine/transmission mount
1. Mount to body 1)
40 Nm (30 ft. lbs.) + 90° (1/4 turn.)
2. Mount to body
25 Nm (18 ft. lbs.)
3. Mount to transmission console 1)
60 Nm (44 ft. lbs.) + 90° (1/4 turn)
1) Replace bolts

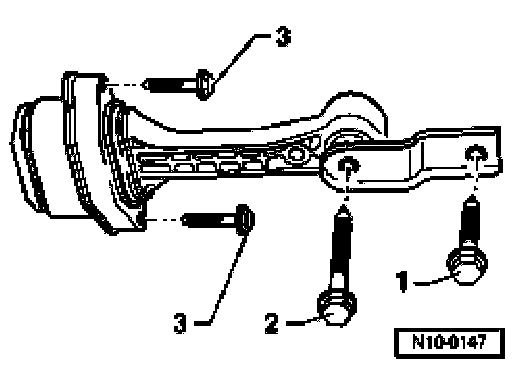

Pendulum support
1. Pendulum support to transmission 1)
40 Nm (30 ft. lbs.) + 90° (1/4 turn )
2. Pendulum support to transmission 1)
40 Nm (30 ft. lbs.) + 90° (1/4 turn )
3. Pendulum support to engine 1)
20 Nm (15 ft. lbs.) + 90° (1/4 turn)
1) Replace bolts
