Transmission Mount: Adjustments

Engine and transmission mounts, aligning

CAUTION: Engine and transmission must be supported by 10-222A engine support bridge before loosening bolts.

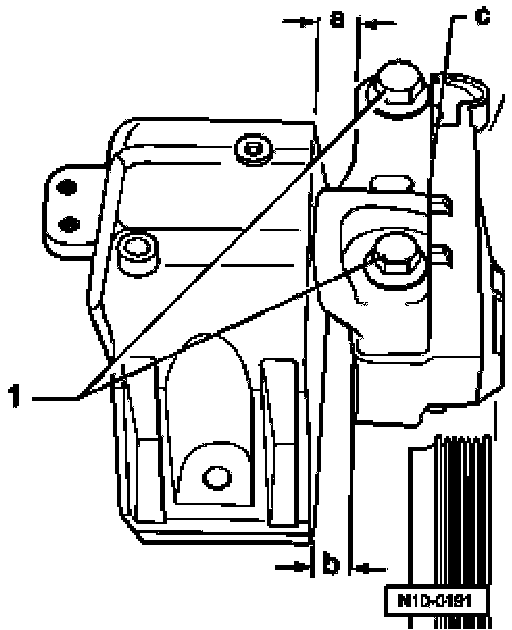

Engine mount assembly
a = 14.0 mm (0.55 inch)
b = minimum 10.0 mm (0.40 inch)
Bolt heads -1- must align with edge of mount -c-.

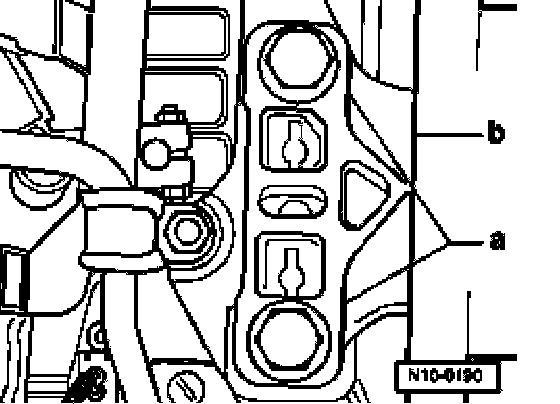

Transmission mount assembly
Edges -a- and -b- must be parallel.

Note: Tightening torques of mounts, Refer to Engine Mount, Specifications, Mechanical
