Evaluating Display Group 010

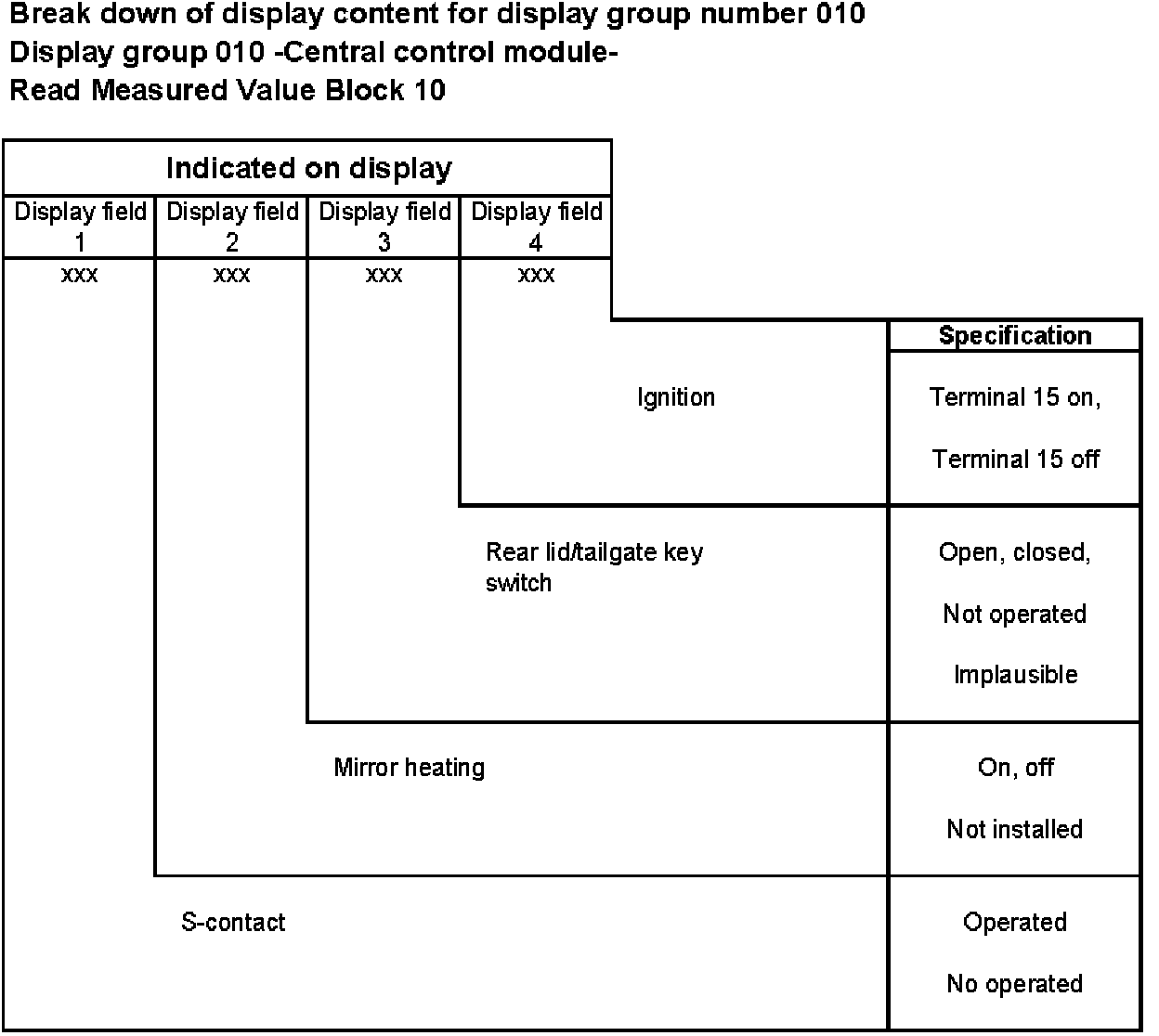

Break down of display content for display group number 010


Display Group 010:

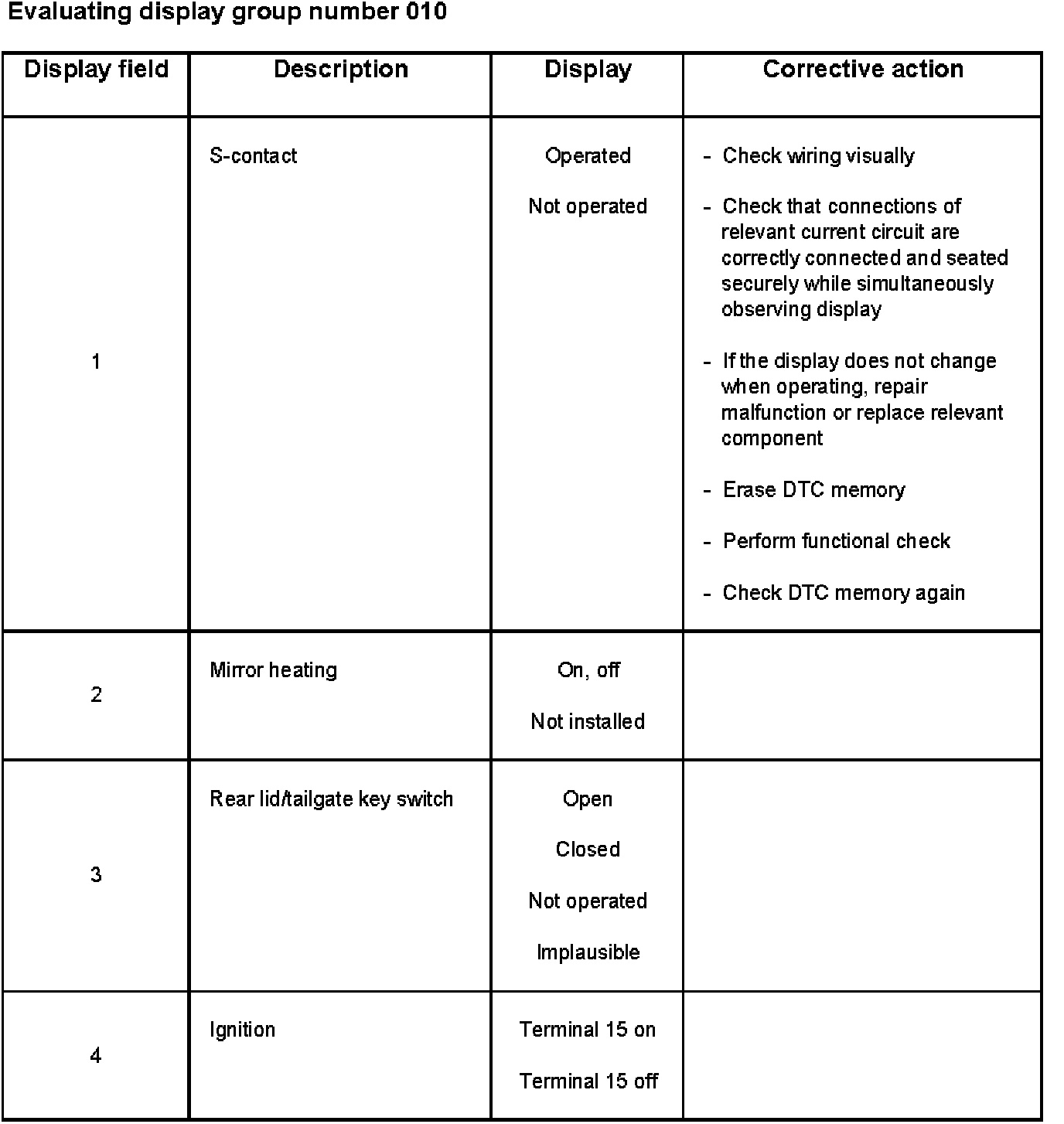

Evaluating display group number 010


Display Field 1 - 4:
