Evaluating Display Group 011

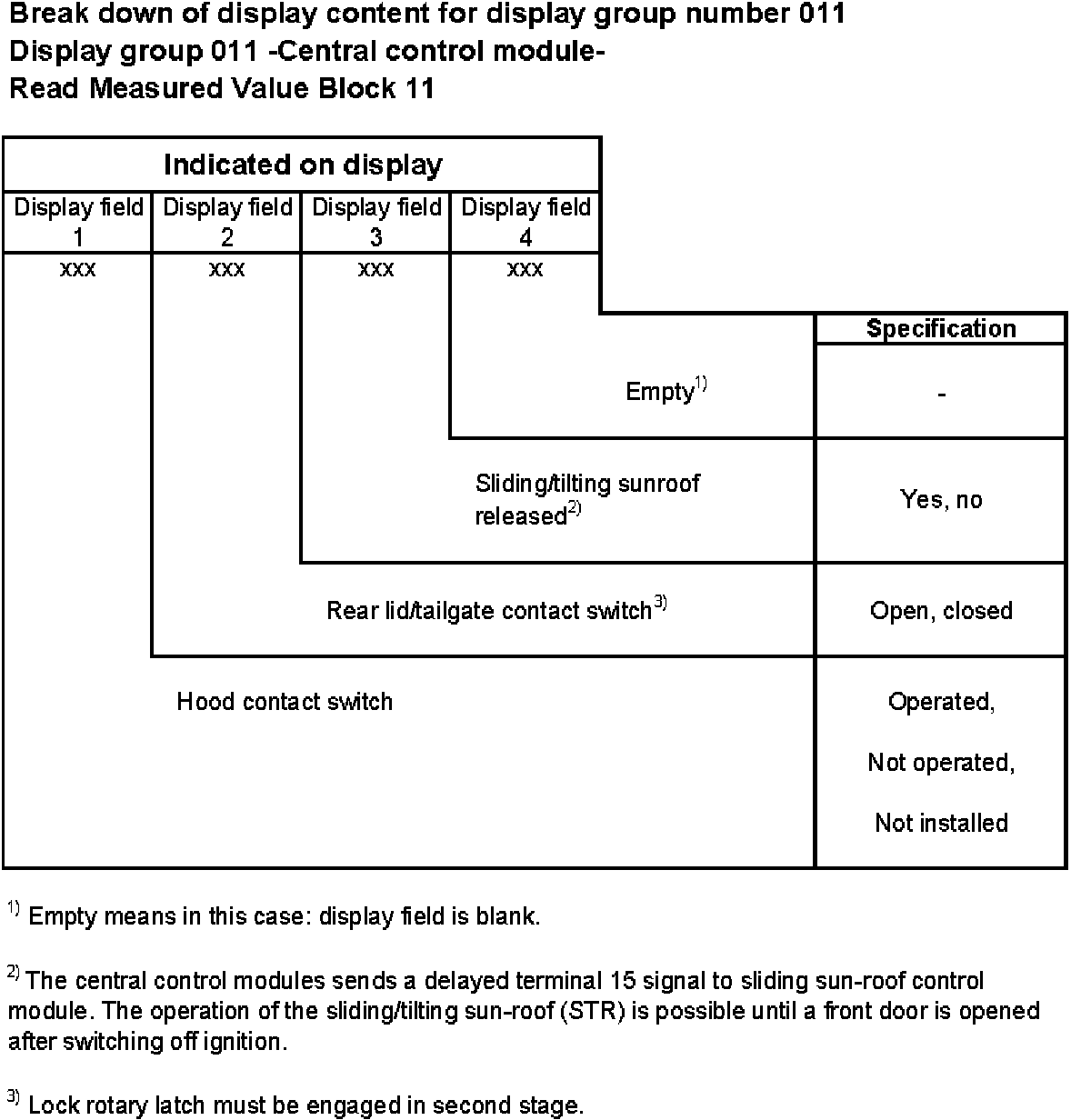

Break down of display content for display group number 011


Display Group 011:

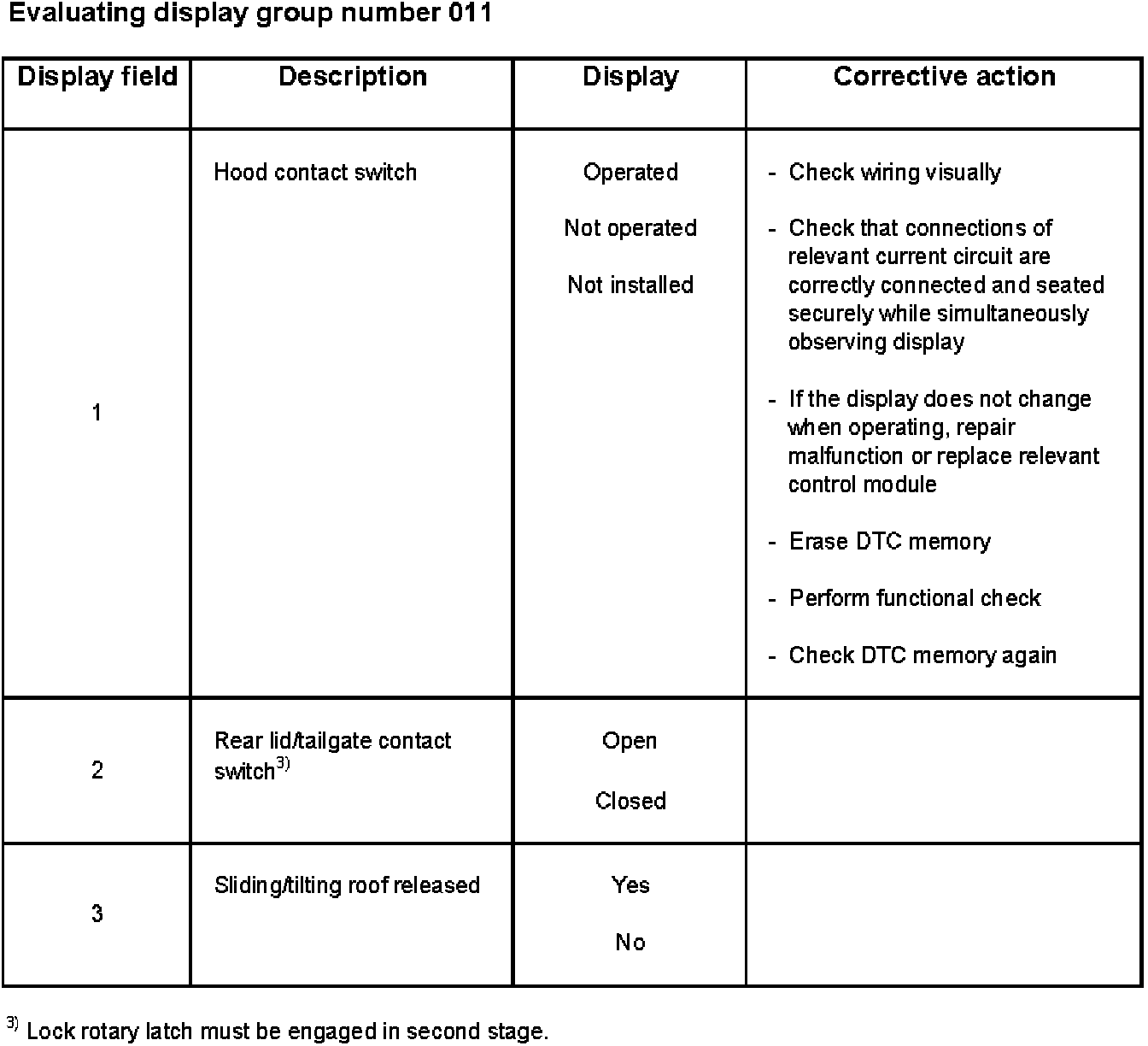

Evaluating display group number 011


Display Field 1 - 3:
