Home >> Volkswagen >> 2003 >> Passat Sedan (3B3) L4-1.8L Turbo (AWM) >> Repair and Diagnosis >> Body and Frame >> Testing and Inspection >> Scan Tool Testing and Procedures >> Measuring Value Blocks (Function 08) >> Evaluating Measured Value Blocks >> Evaluating Display Group 013

Evaluating Display Group 013

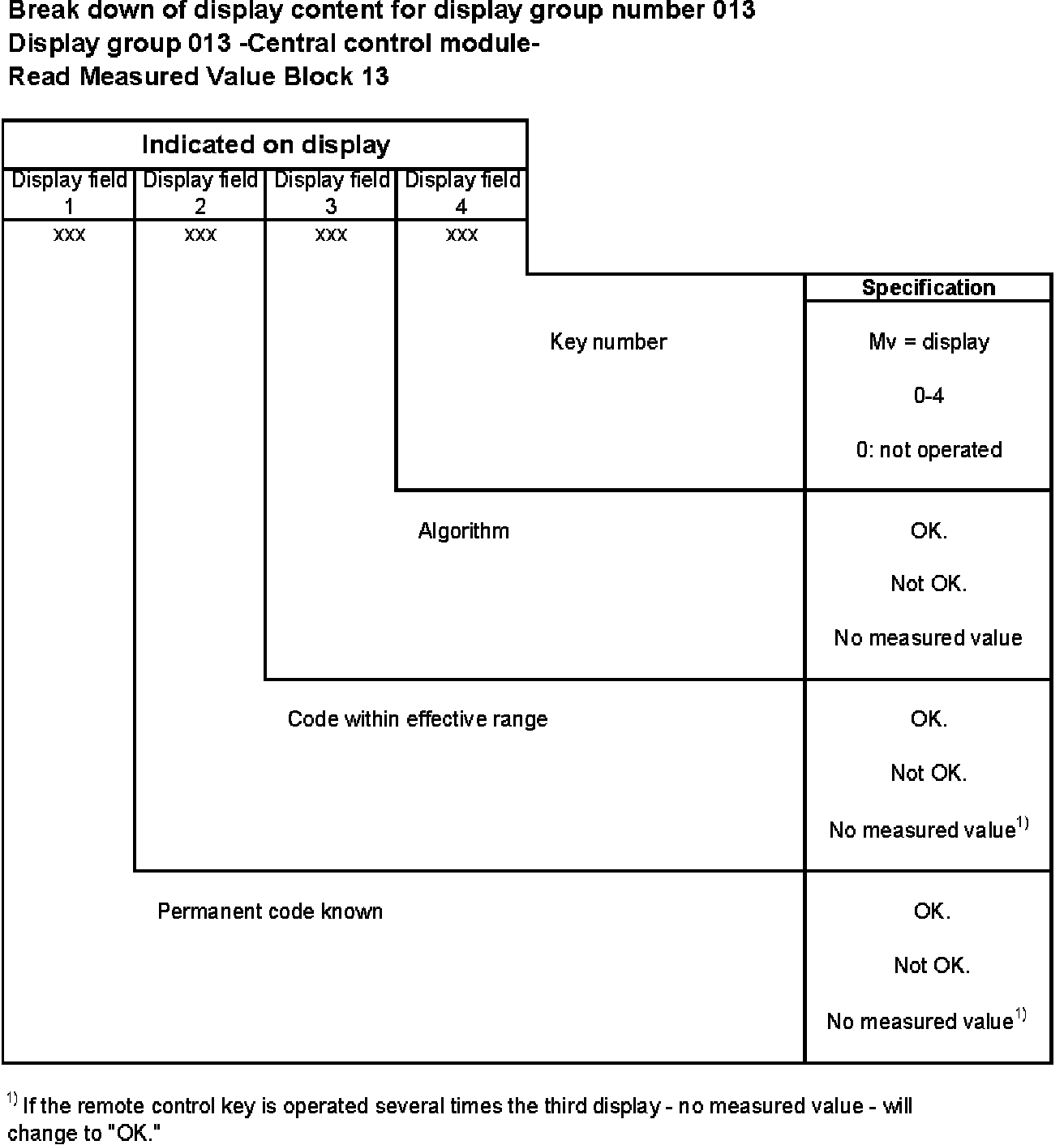

Break down of display content for display group number 013


Display Group 013:

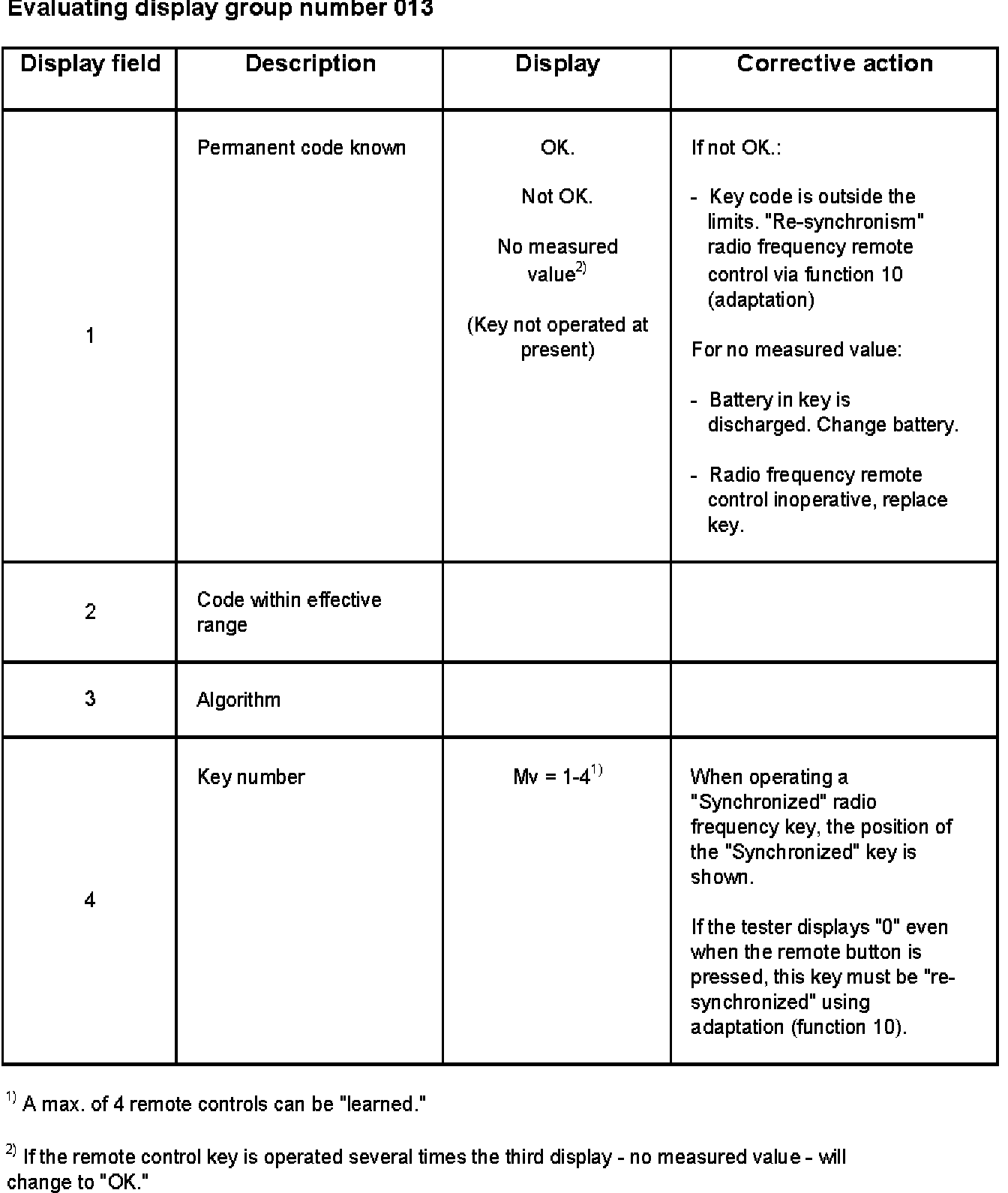

Evaluating display group number 013


Display Field 1 - 4:
