Engine Mount: Service and Repair

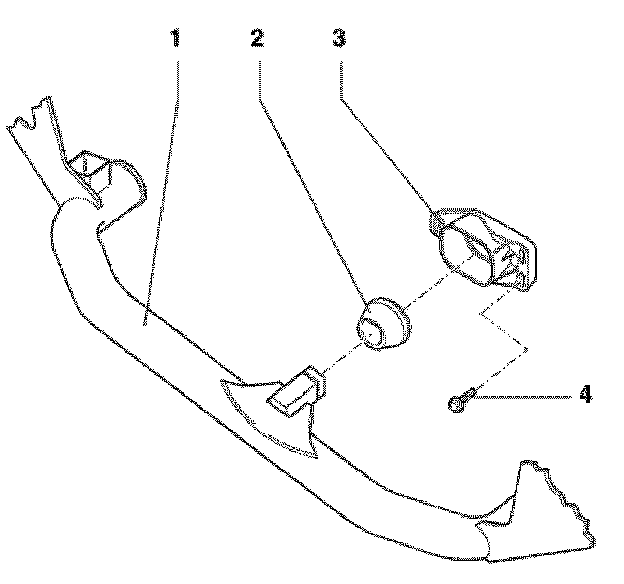

Front engine mount






1 - Transverse line

- with torque support


2 - Stop buffer

3 - Stop

- Let it rest on stop buffer with its own weight and tighten securing bolts.

4 - 30 Nm
