Rear

Shock absorber/spring, removing and installing
Removing





- Remove bolts with vehicle standing on its wheels (raise vehicle until the bolt is accessible).
- Raise vehicle to assembly height to relieve the pressure on the coil spring.
- Pull rear axle down and remove coil spring with the help of a second mechanic if necessary.

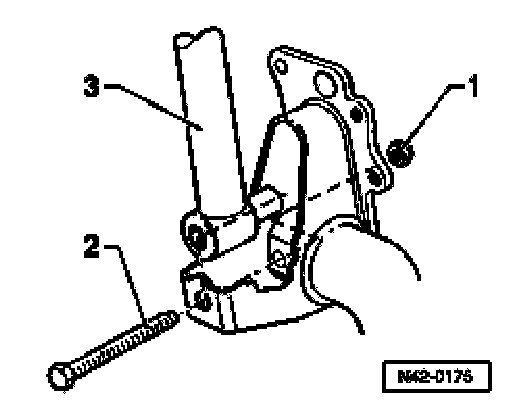

- Disconnect shock absorber from rear axle.
1. Self-locking nut
2. Hex bolt
3. Shock absorber

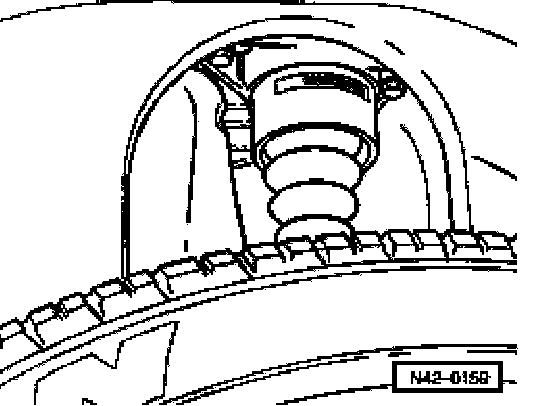

- Take out shock absorber.

Installing
Install in reverse order.
