Hood Latch: Adjustments

Hood Lock, Adjusting

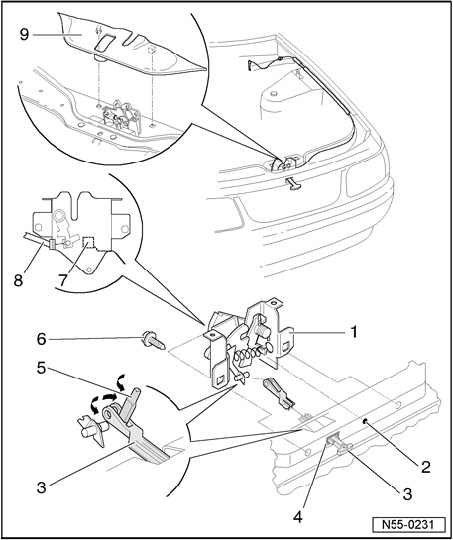

- Unclip cover cap - 9 - from lock carrier.
- If bolts: - 6 - are loosened now, hood gap dimensions can be corrected or adjusted: Body gap dimensions; front body
- Tightening torques: Bolts - 6 - 12 Nm.
