Evaluating Display Group 004

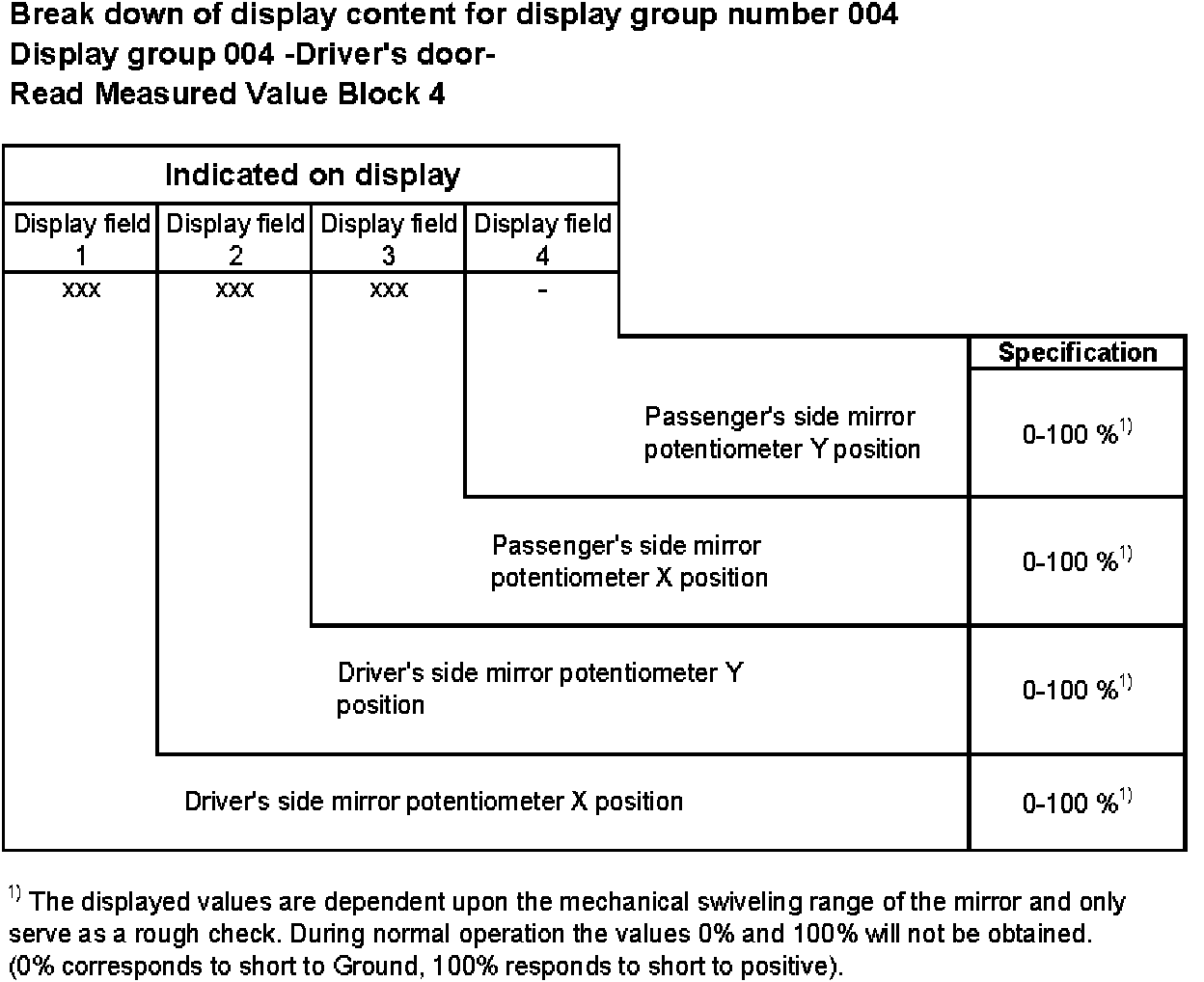

Break down of display content for display group number 004


Display Group 004:

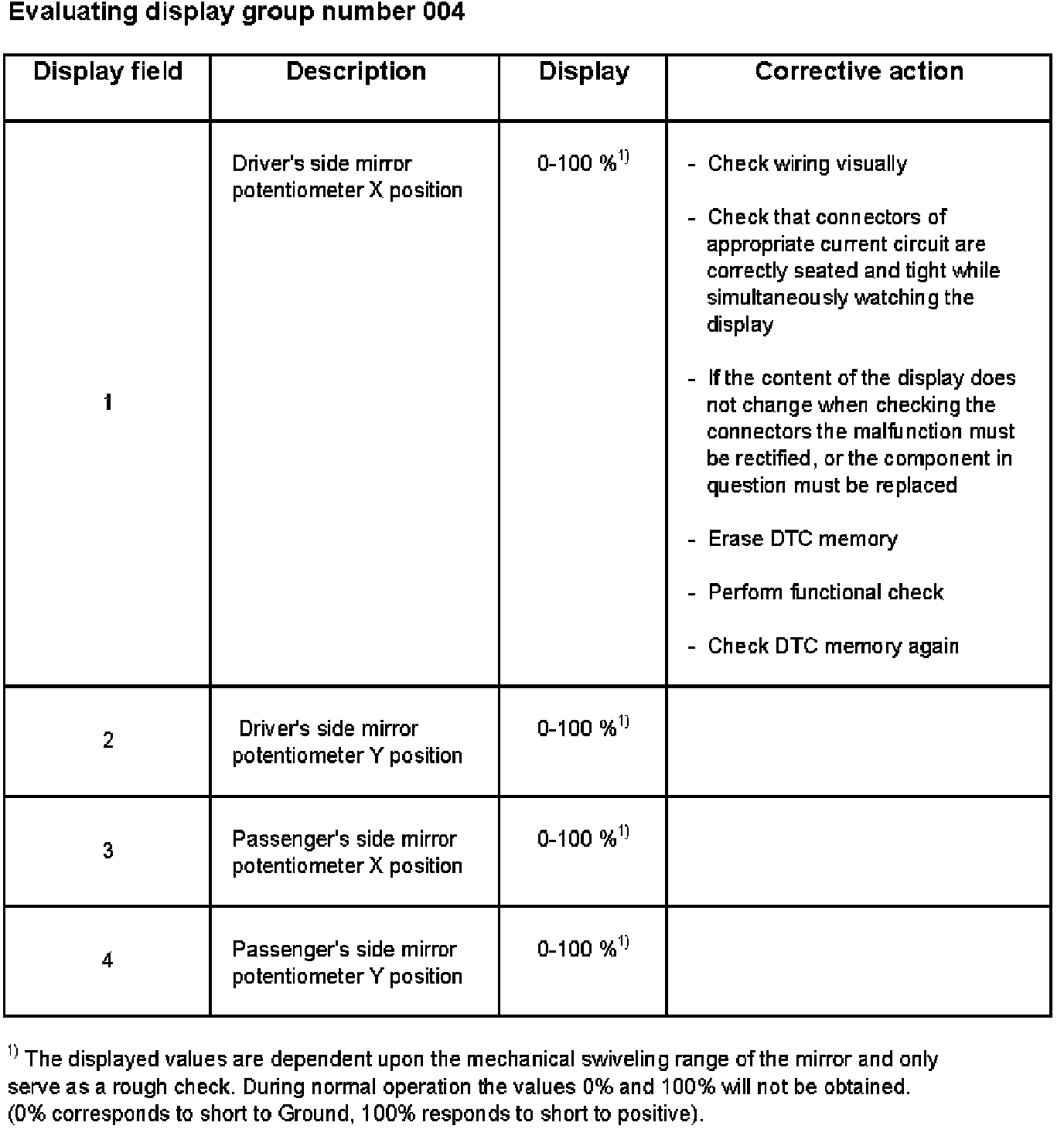

Evaluating display group number 004


Display Field 1 - 4:
