Evaluating Display Group 009

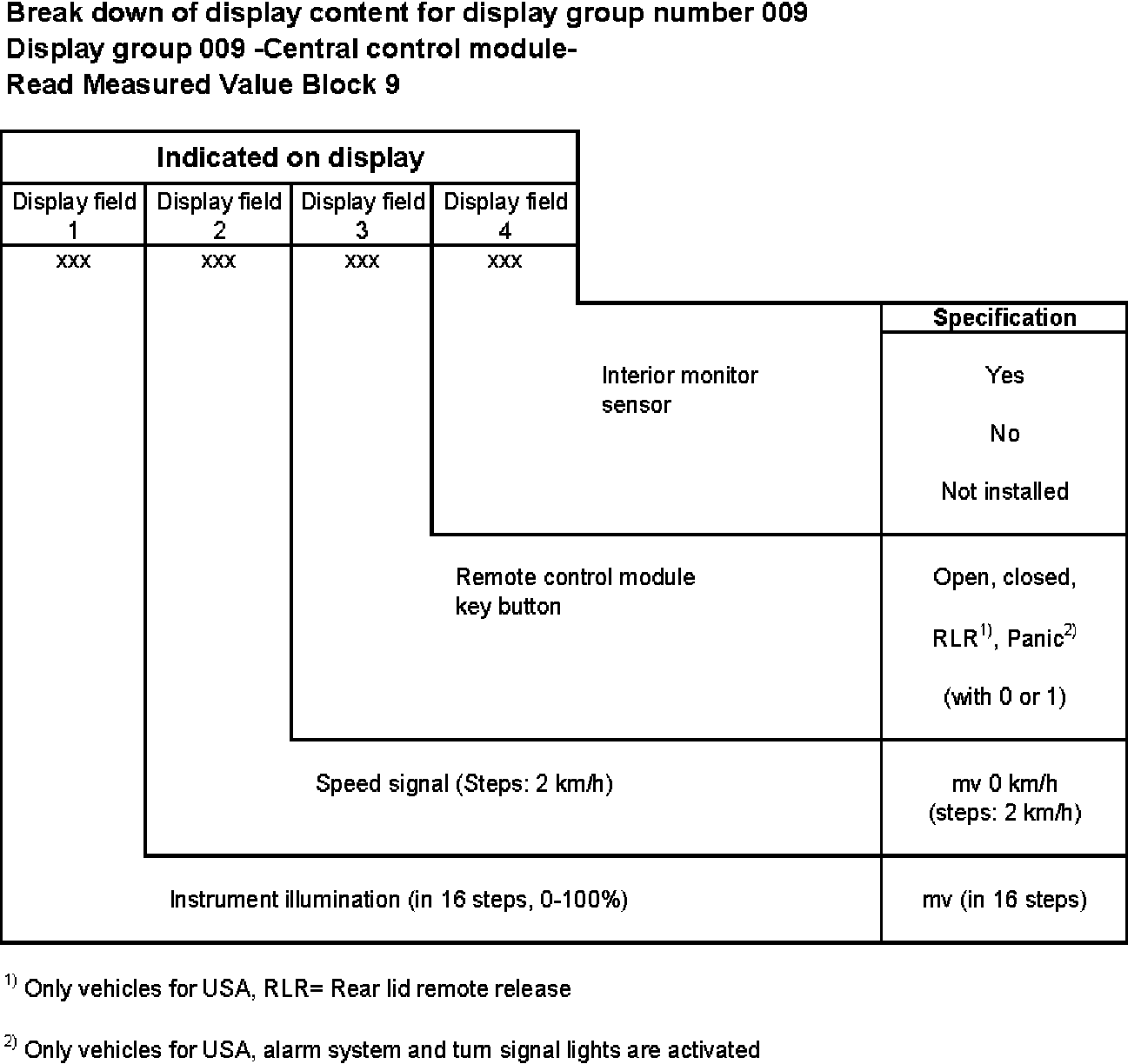

Break down of display content for display group number 009


Display Group 009:

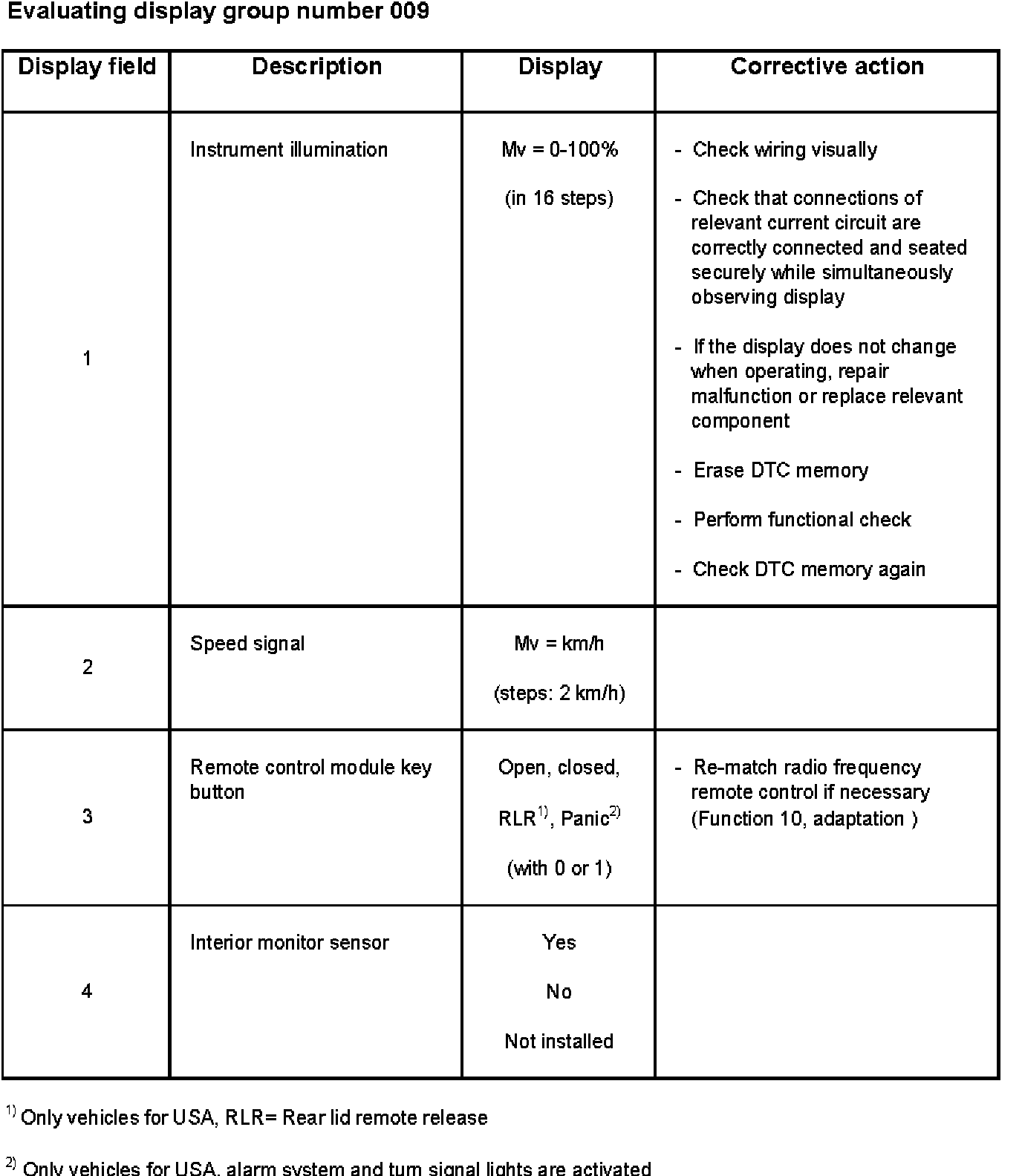

Evaluating display group number 009


Display Field 1 - 4:
