Rear Camber

Rear axle camber (vehicles with all-wheel drive), adjusting

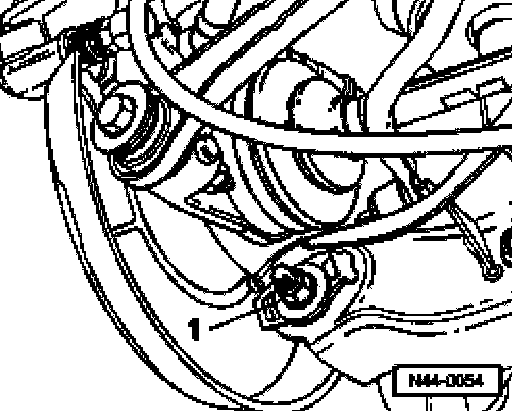

- Loosen hex nut -1-.

Note: The maximum adjustment range of the adjustment screw is 90° to the left or right of center.

- Turn eccentric bolt until the specification is obtained.
- Tighten hex nut -1- again, Refer to Axle/ Hub Carrier, Rear axle with four wheel drive, assembly overview, See - item 19.
- Now check camber values again.
Specifications for vehicle alignment, Refer to Alignment Specifications
