Rear Axle Toe (Vehicles With AWD), Adjusting

Rear axle toe (vehicles with all-wheel drive), adjusting

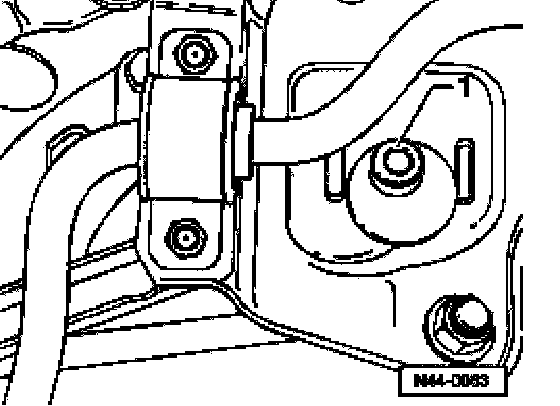

- Loosen hex nut for eccentric bolt -1-.

Note: The maximum adjustment range of the adjustment screw is 90- to the left or right of center.

- Turn eccentric bolt until the specification is obtained.
- Tighten hex nut for eccentric bolt -1-, Refer to Axle/Hub Carrier, Service and Repair, Rear axle with four wheel drive, assembly overview, See item 45.
- Now check toe values again.
- Specifications for vehicle alignment, Refer to Alignment Specifications
