Scan Tool Testing
>>
Measuring Value Blocks (Function 08)
>>
Evaluating Measured Value Blocks
>>
Evaluating Display Group 003
Evaluating Display Group 003

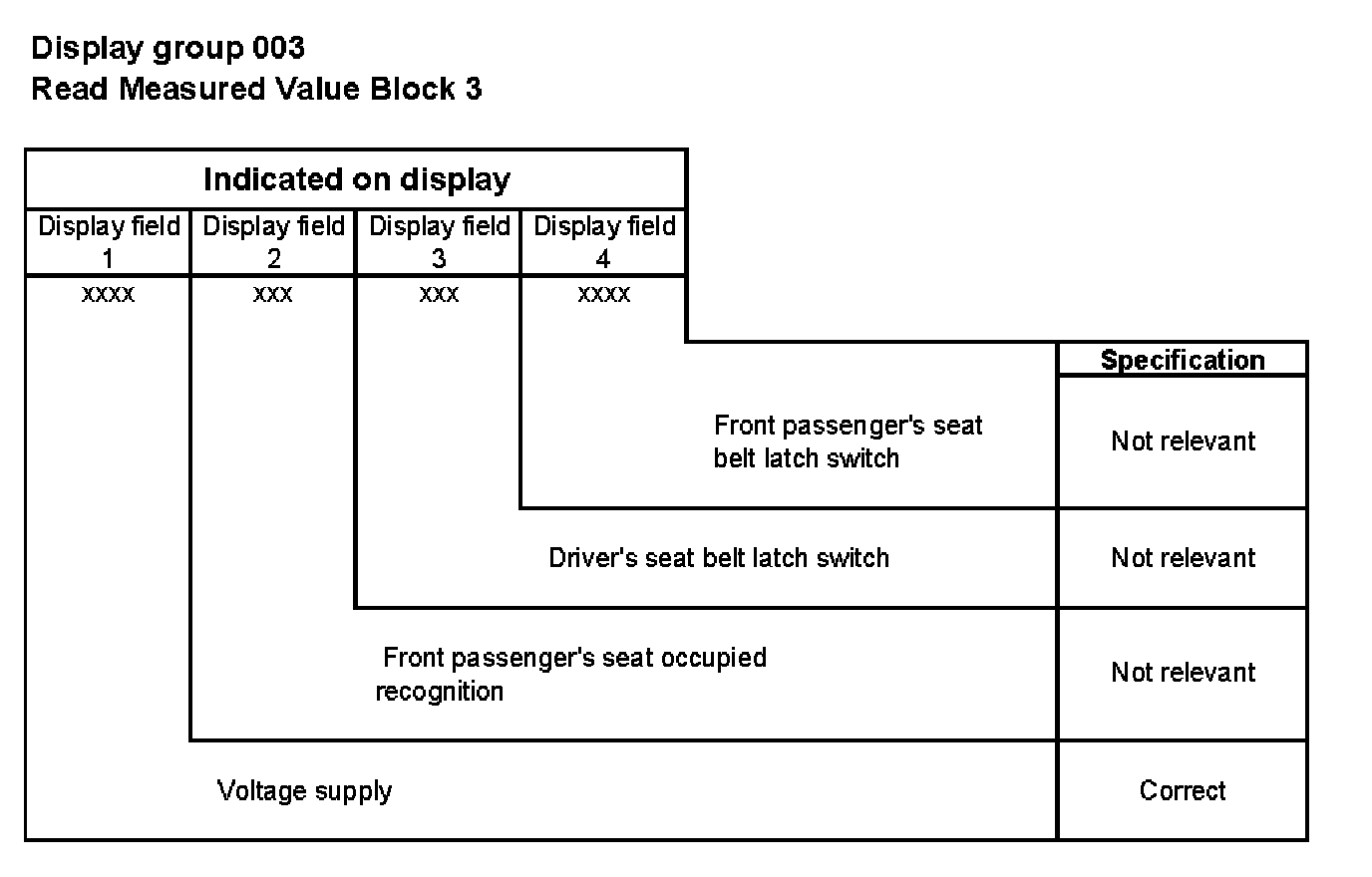

Display Group 003
Display Group 003:

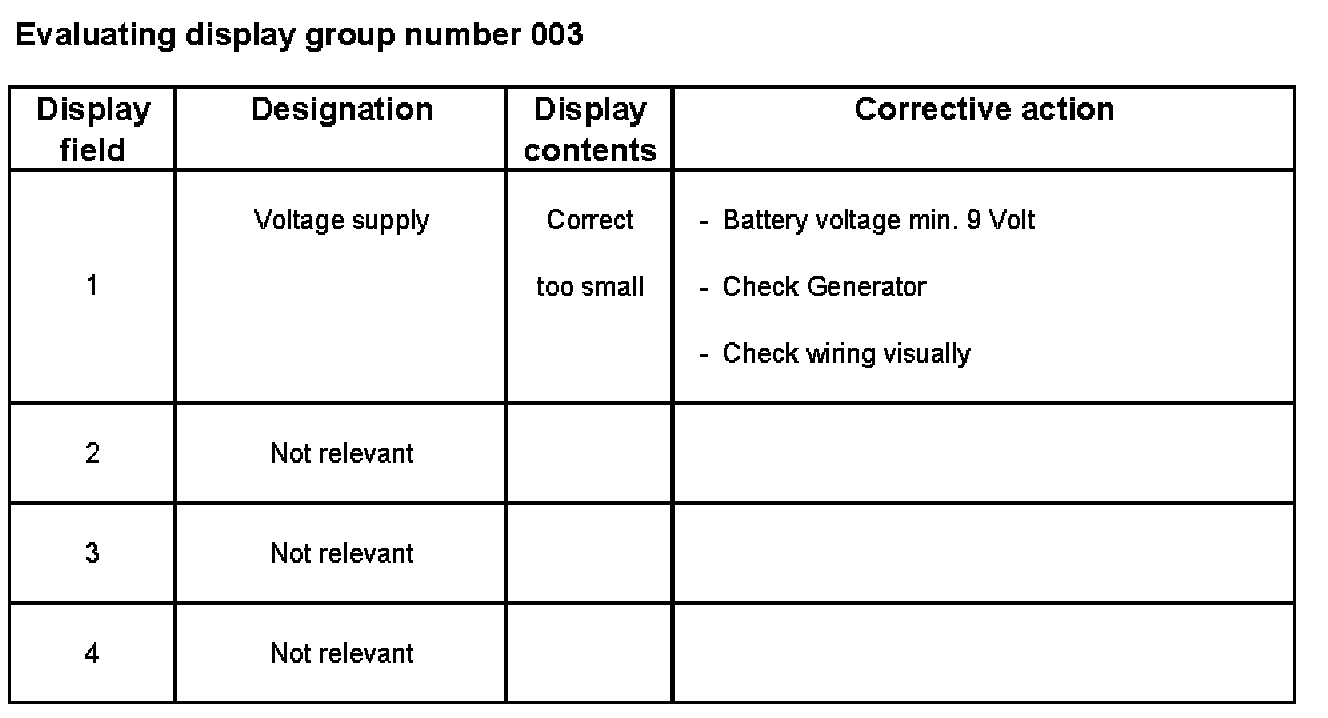

Evaluating Display Group Number 003
Display Field 1 - 4:
