4 Speed 01N Transmission




4 Speed 01N Transmission

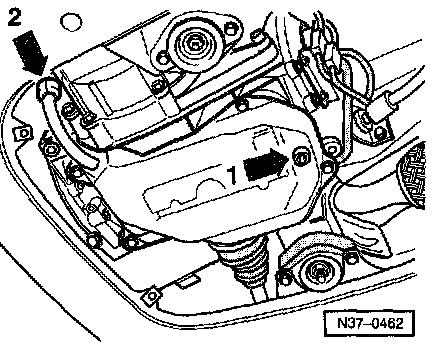

1 Level Plug (with Overflow Line Tube) 15 Nm
2 Fill Plug (with protective cap)

Note: Always replace cap. The cap secures the sealing plug.
