Air Injection Vacuum Control Solenoid Valve: Service and Repair

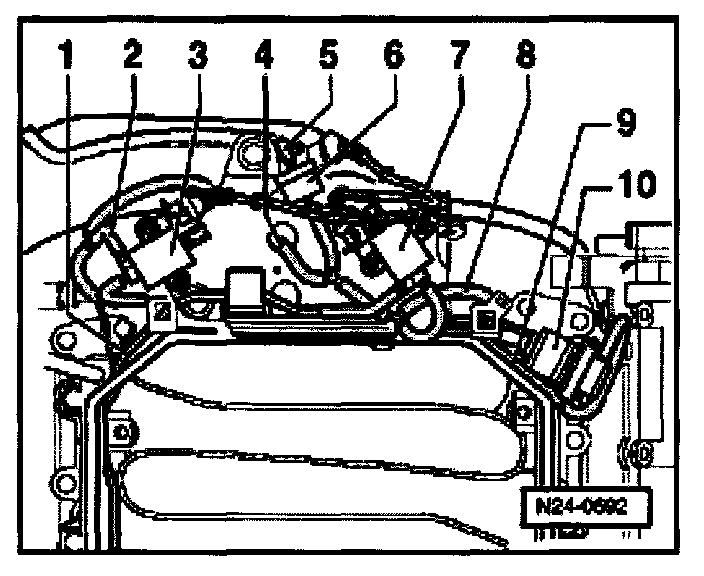

Vacuum connections (top view)







1 - to vacuum setting element for intake manifold change-over
2 - to combination valves
3 - Secondary Air Injection (AIR) solenoid valve -N112-
4 - to Secondary Air Injection (AIR) solenoid valve
5 - to T-piece on intake manifold
6 - Check valve
7 - Intake manifold change-over valve
8 - to vacuum reservoir in left wheel well
9 - from T-piece on intake manifold
10 - Fuel pressure regulator
