Procedures

Steering Wheel With Switches

Disassembling

Special Tools: 998 8695

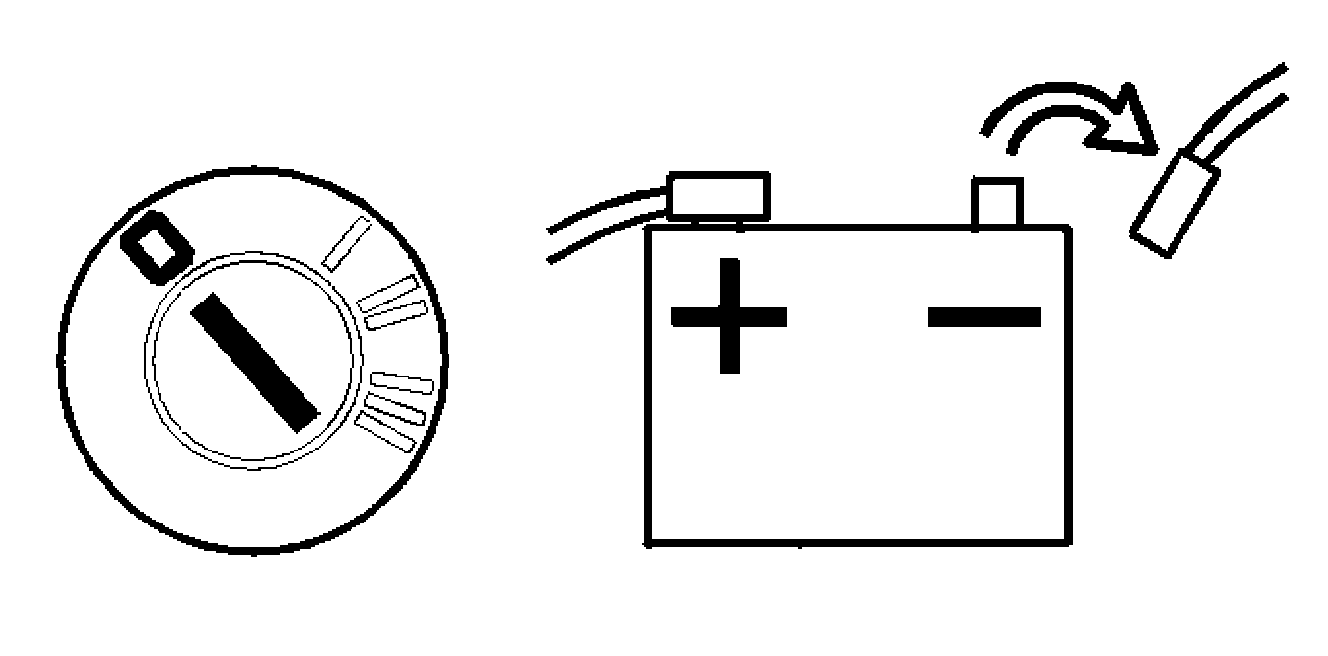

Ignition off.

Disconnect battery negative lead







Check that the customer has left the radio code.

WARNING: Before assembling the steering wheel the ignition should be in position II. Then the battery negative should be reconnected. Ensure that nobody is in the car when the battery is being connected.

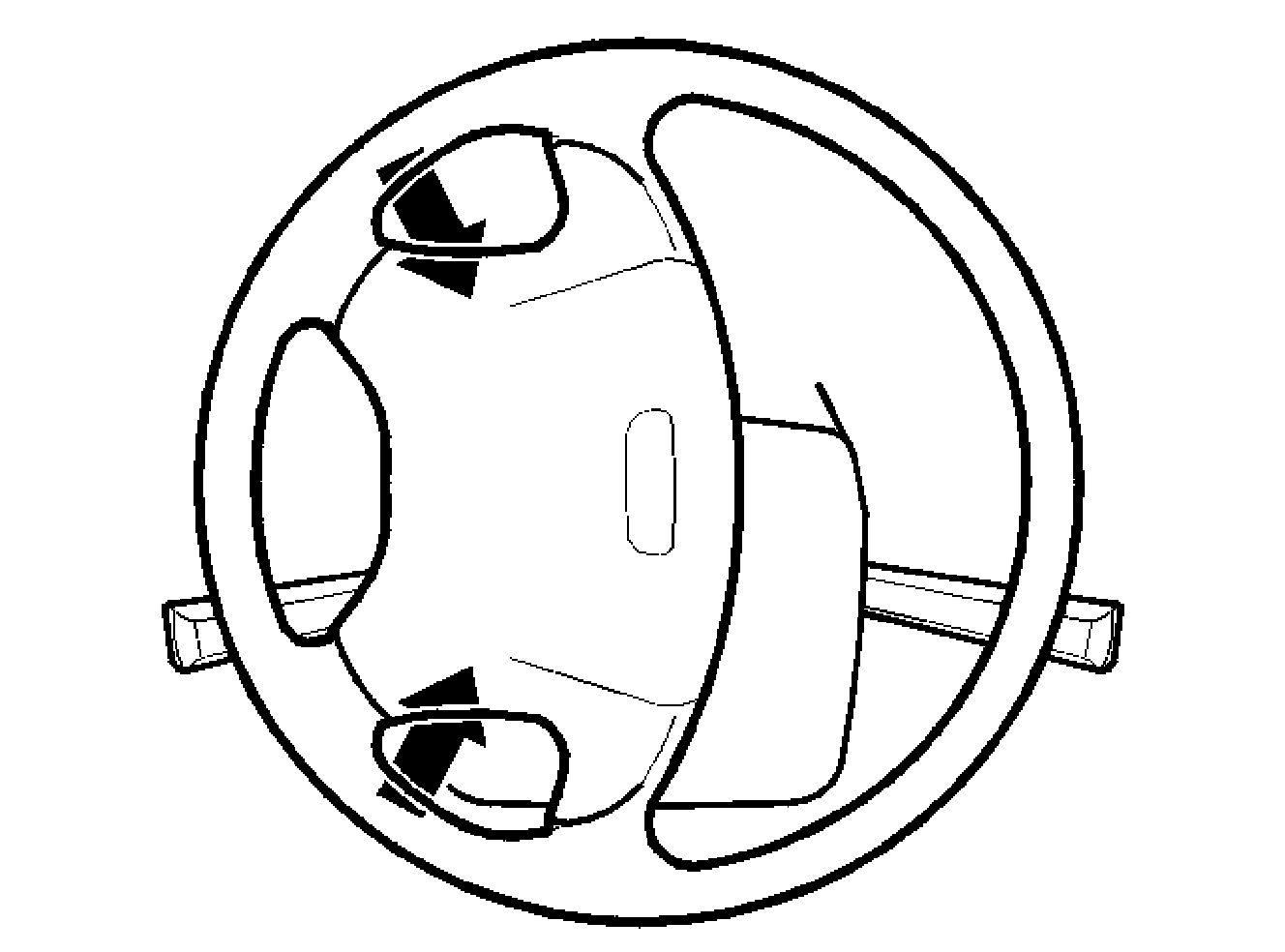

Removing steering wheel screws







Leave the screws on the reverse of the steering wheel in their countersunk holes.

2 Torx 30 screws.
