Diesel Data
: Automotive Repair
Home
>>
Volvo
>>
2002
>>
S60 2.4T AWD L5-2.4L Turbo VIN 58 B5244T3
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
54/40A
54/40A

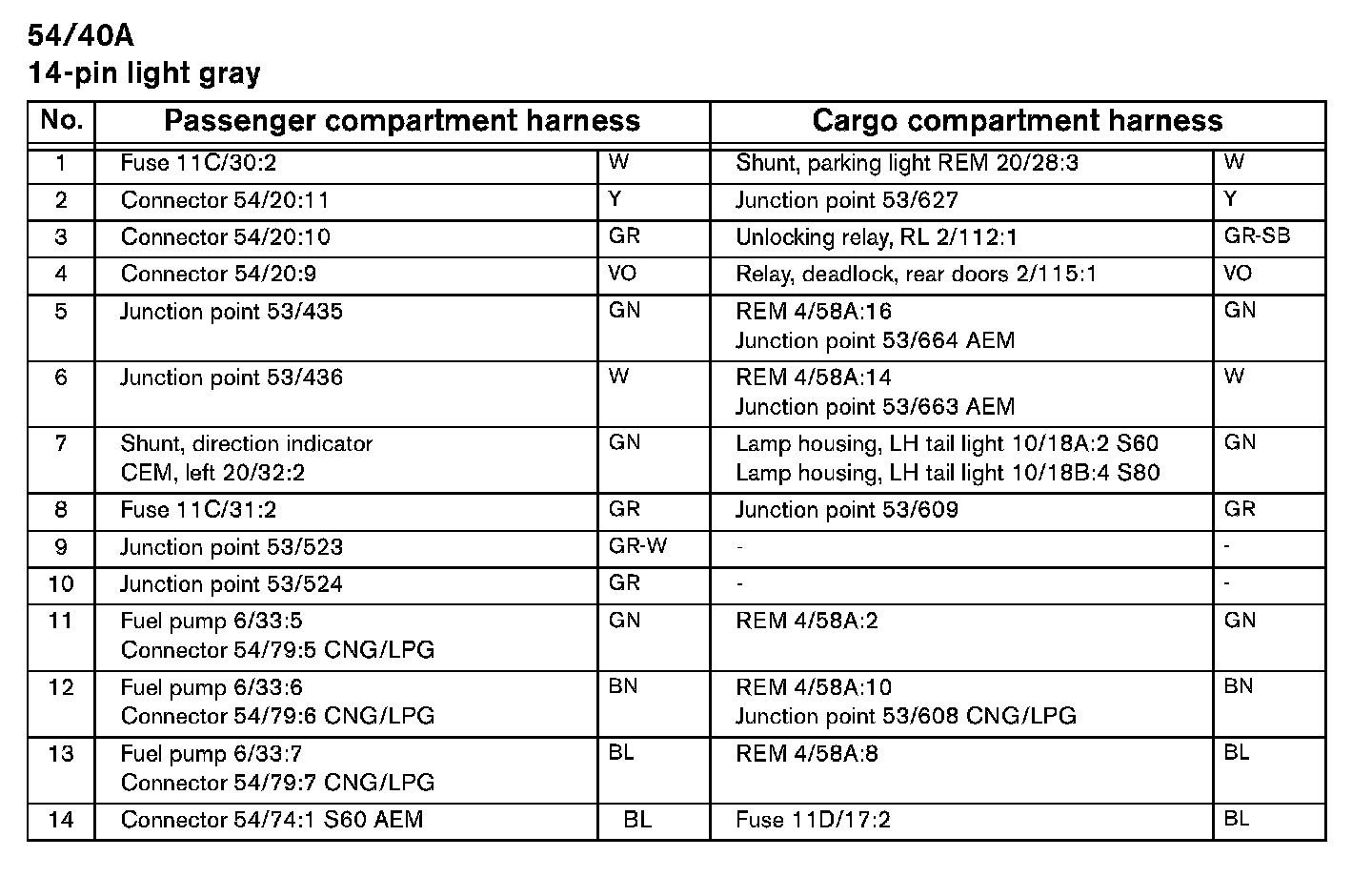

54/40A Connectors:
54/40A Connector:
