V70 2.4 L5-2.4L VIN 61 B5244S
>>
Repair and Diagnosis
>>
Accessories and Optional Equipment
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

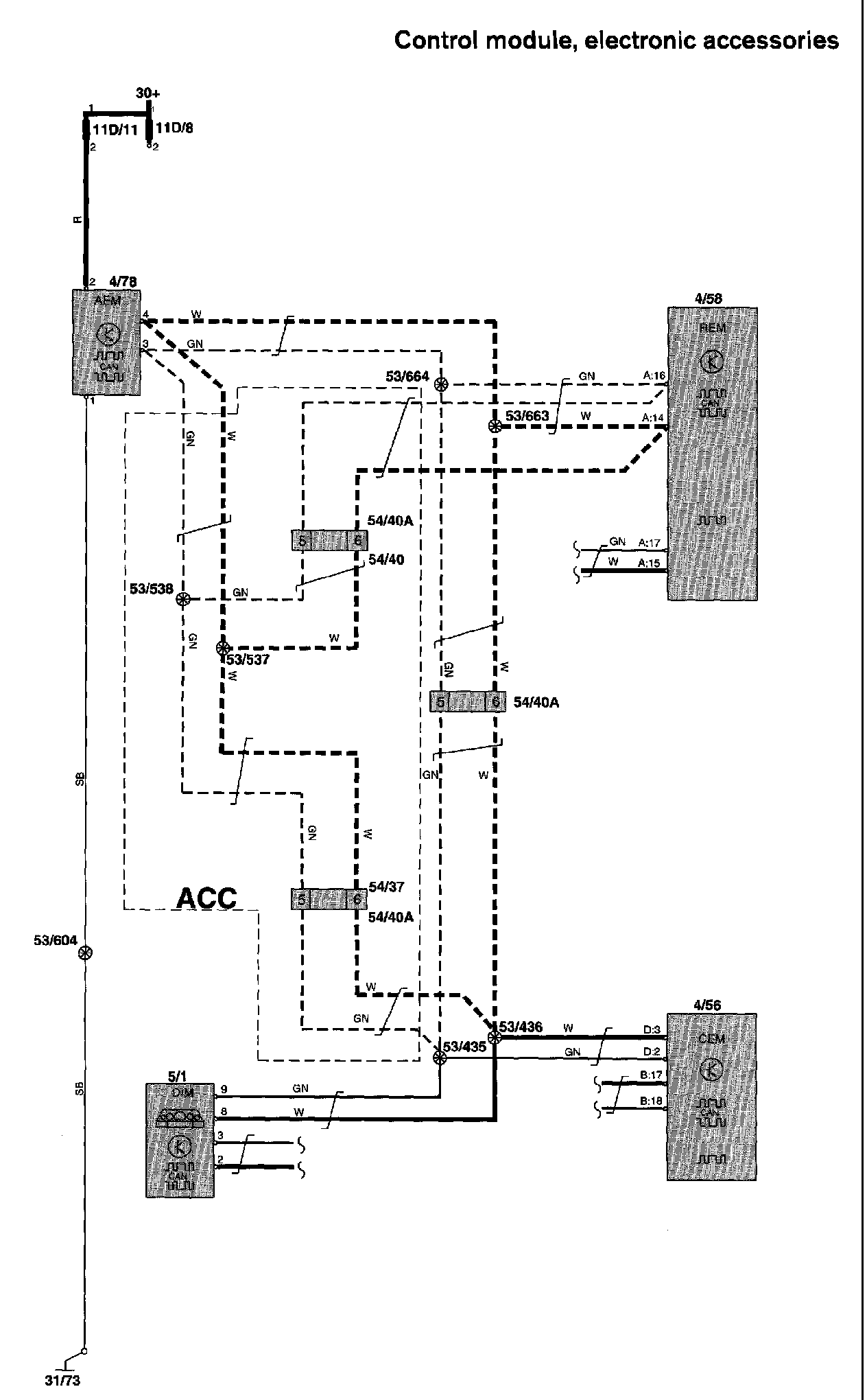

Control Module, Electronic Accessories:
Diagram legend:
Diagram Legend
