Diesel Data
: Automotive Repair
Home
>>
Volvo
>>
2004
>>
V70R AWD L5-2.5L Turbo VIN 52 B5254T4
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
54/3LF
54/3LF

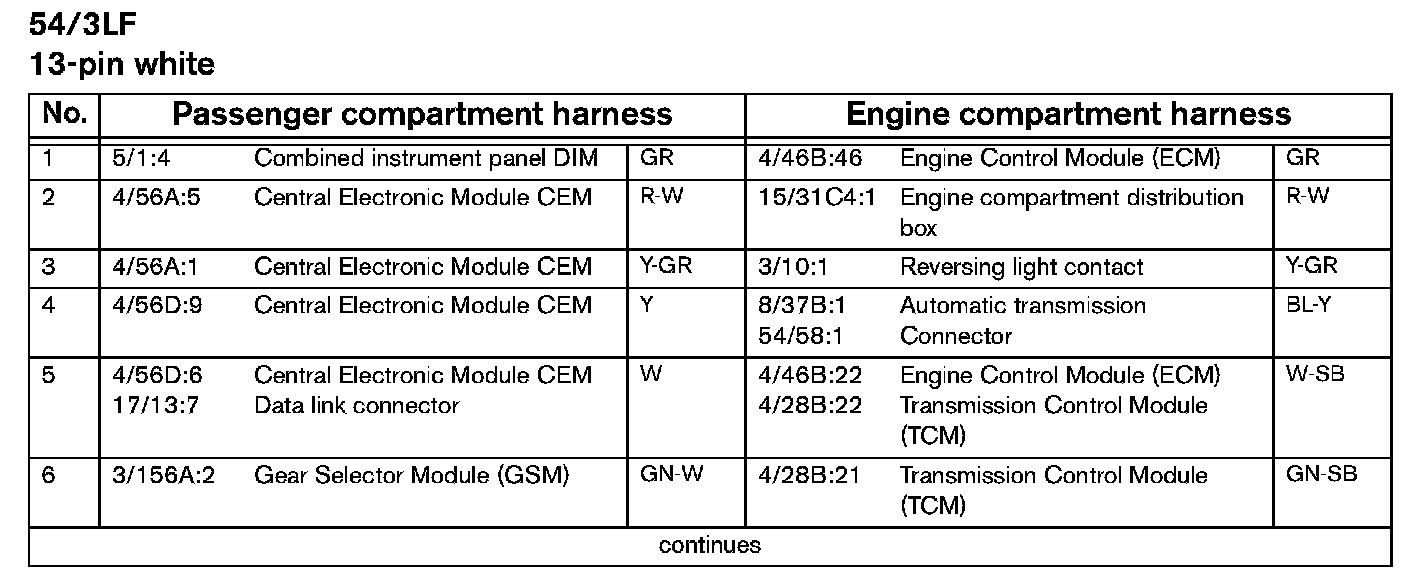

54/3LF - Part 1:

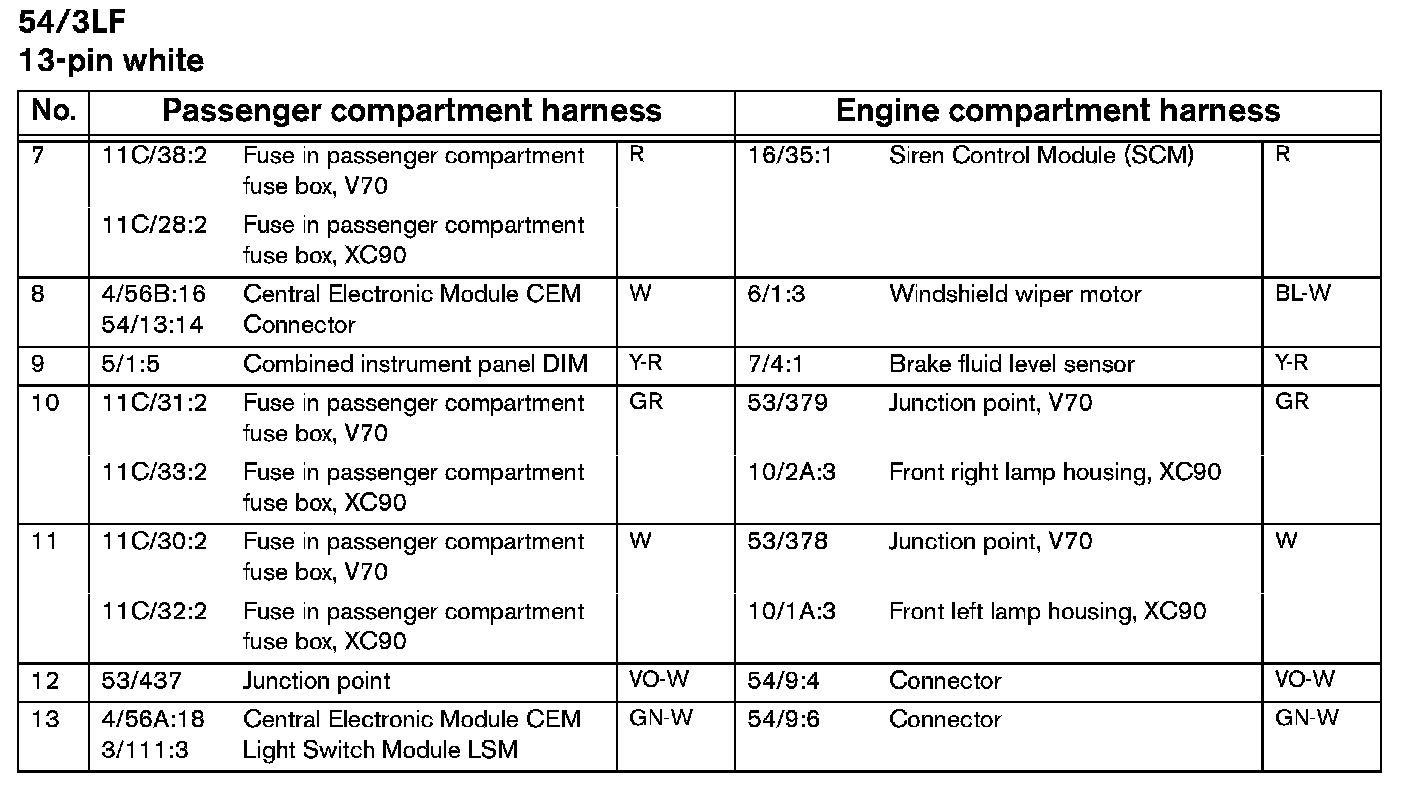

54/3LF - Part 2:
54/3LA-G Connector:
