Trailer Lamps

Towbar Cable Harness

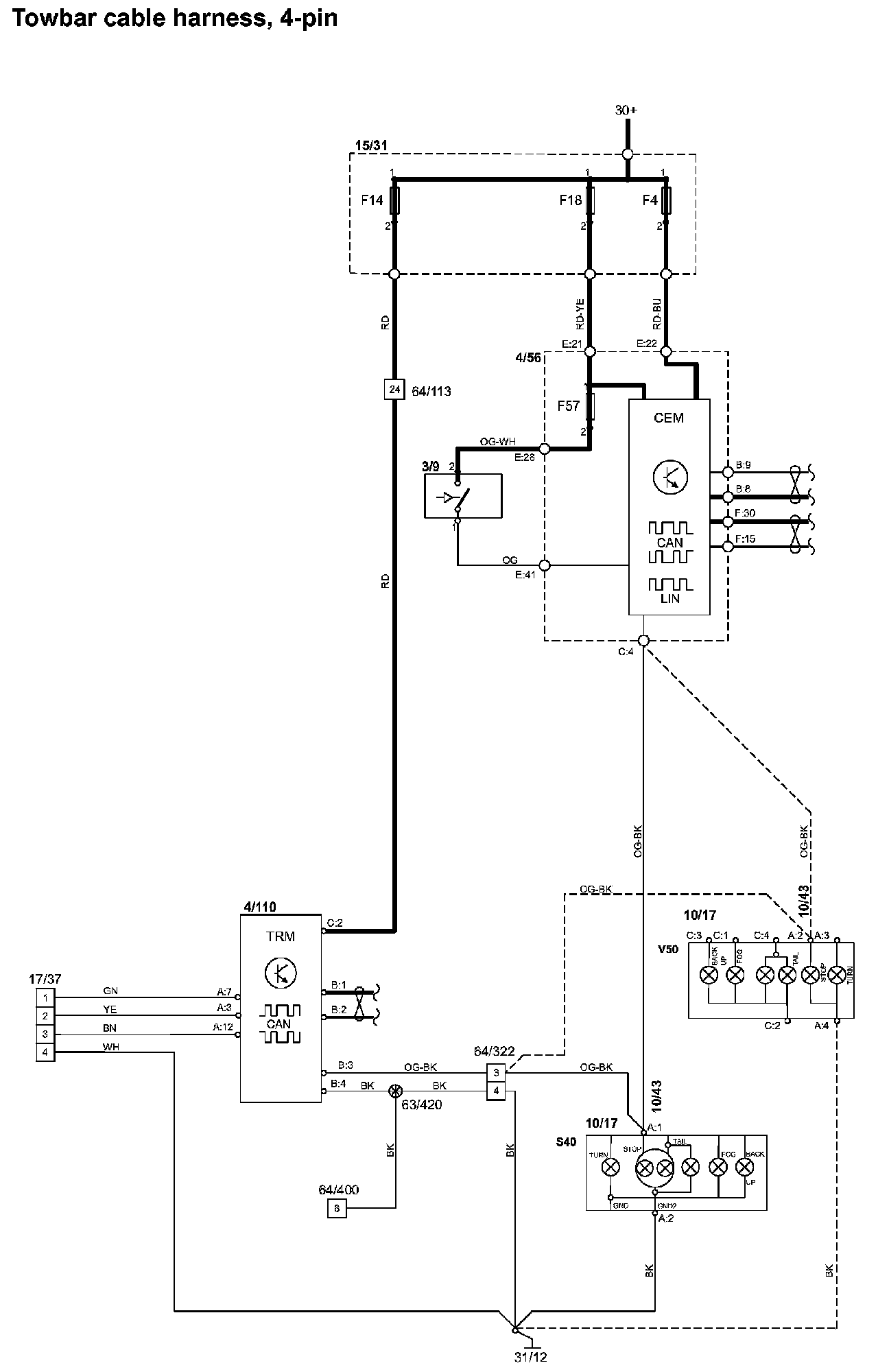

Towbar Cable Harness, 4-Pin:

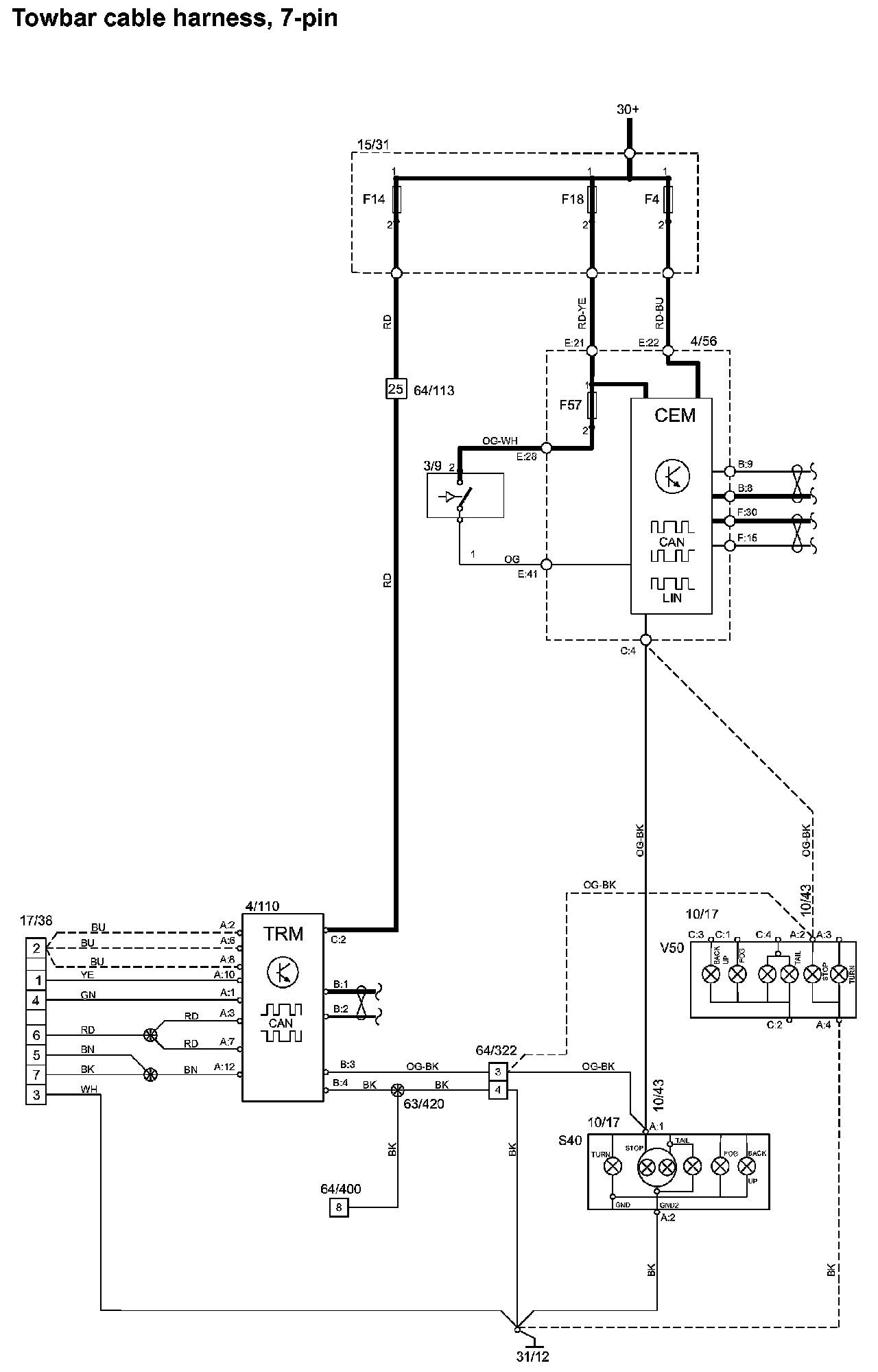

Towbar Cable Harness, 7-Pin:

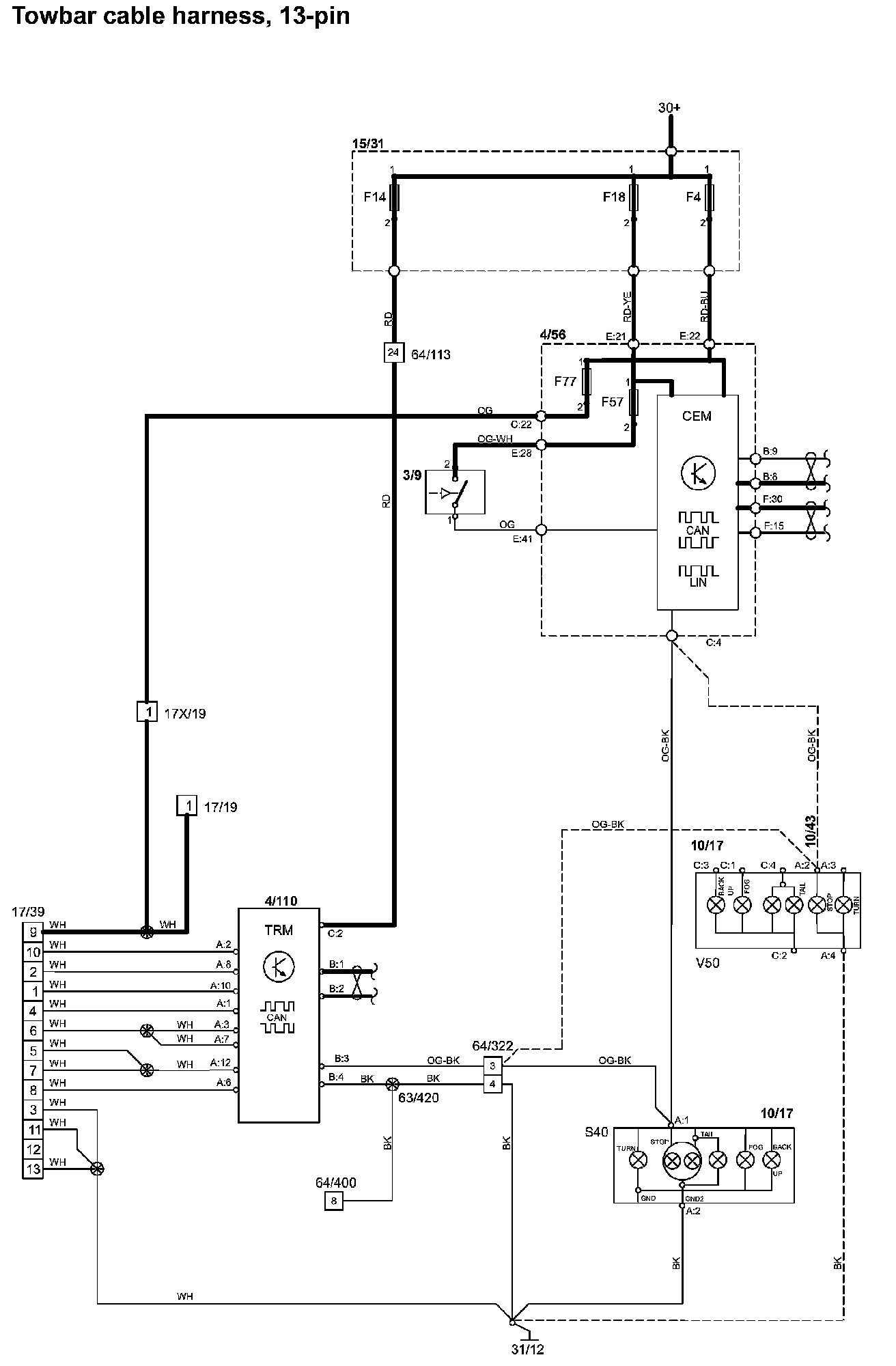

Towbar Cable Harness, 13-Pin:

Diagram Legend: Diagram Legend

Wire Color Code Identification and Other Abbreviations: Wire Color Code Identification and Other Abbreviations
