TV Receiver, Replacing

TV receiver, replacing

Removal

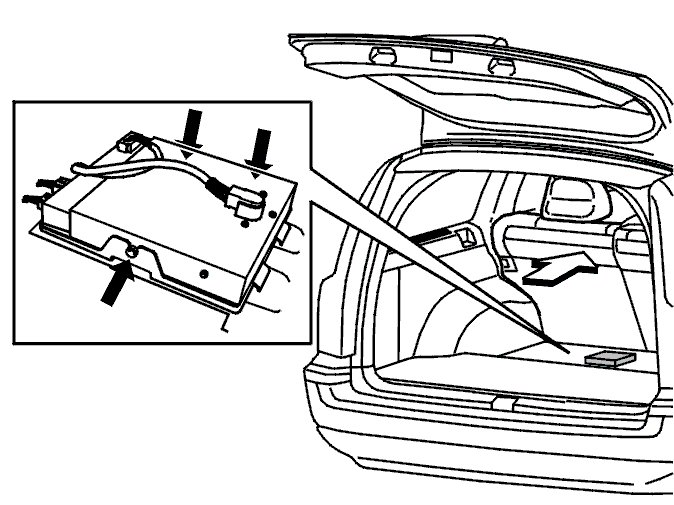

- Remove the front floor hatch from the cargo compartment
- Fold up the short backrest
- Slacken off the front and rear screws for the receiver. Lift the receiver up
- Disconnect the connectors.

Note! The DIN connector and terminal on the receiver are marked yellow.

Installation

- Lightly tighten the screws for the receiver
- Install the connector.

Note! The DIN connector and terminal on the receiver are marked yellow.

- Install the receiver. Tighten the screws
- Reposition the backrest
- Install the front floor hatch.
