Loudspeaker, Side Panel, Rear Seat

Applies to loudspeaker, side panel, rear seat

Note! The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the essential information in the illustrations is always correct.

Removing the speaker grille









Remove:
- the side panel in the rear seat as described in Side panel rear seat Side Panel Rear Seat

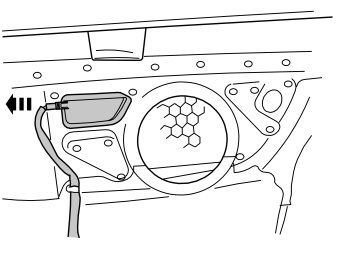

- the lighting
- the connector

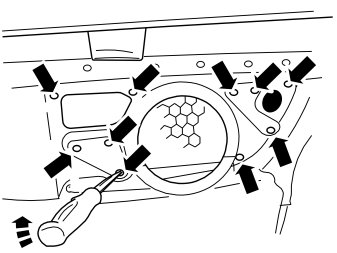

- the speaker grille (10 fasteners).

Hint: Use a knife to carefully pry away the fasteners.

Fitting the speaker grille





Install:
- the speaker grille

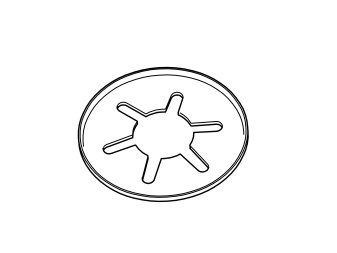

- 10 star washers
- the lighting
- the connector
- the side panel in the rear seat as described in Side panel rear seat Side Panel Rear Seat
