Brake Fluid Reservoir: Service and Repair

Reservoir, brake fluid

Operation number: 59326-2

Note! Some variation in the illustrations may occur, but the essential information is always correct.






Removal

Note! Removal steps in this procedure may contain installation details.

Remove the following items:
- the battery. Refer to: Battery Removal and Replacement
- the plenum chamber. Refer to: Plenum chamber Service and Repair.

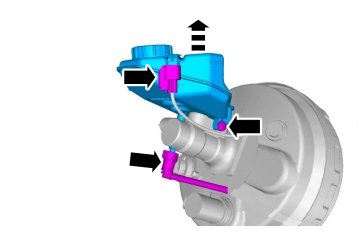

Warning! Be prepared to collect escaping fluids.

Torque: M6, 10 Nm

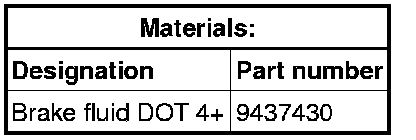

Use: Brake Fluid DOT 4+, 9437430

Installation

To install, reverse the removal procedure
