Parking Brake Shoe: Service and Repair

Brake shoes parking brake

Note! Some variation in the illustrations may occur, but the essential information is always correct.






Removal

Note! Removal steps in this procedure may contain installation details.

Remove the brake disc. Refer to: Rear brake disc Rear Brake Disc

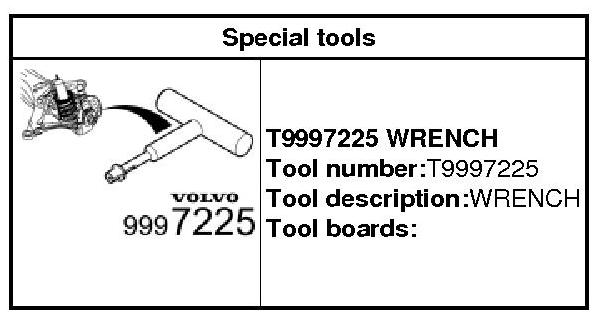

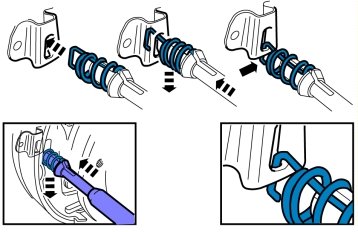

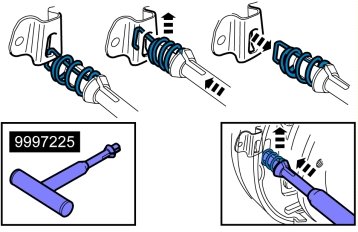

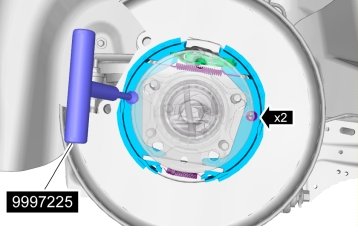

999 7225 Wrench 999 7225 Wrench





Installation

To install, reverse the removal procedure





Adjust the parking brake. Refer to: Parking brake, adjusting Adjustments
