Power Steering Fluid Cooler: Service and Repair

Oil cooler, power steering

Operation number: 64525-2






Removal





Remove the headlamp Refer to: Headlamps Headlamps





Warning! Be prepared to collect escaping fluid.

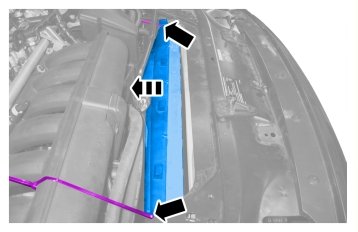

Remove casing bumper front Refer to: Cover bumper front Service and Repair





Warning! Be prepared to collect escaping fluid.

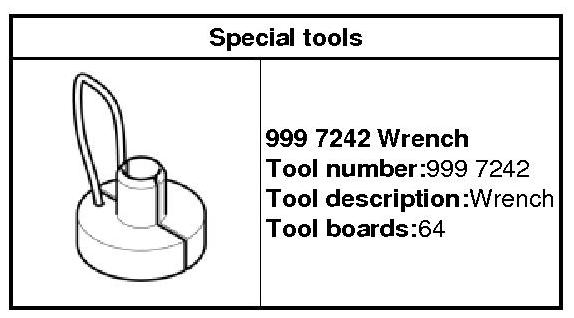

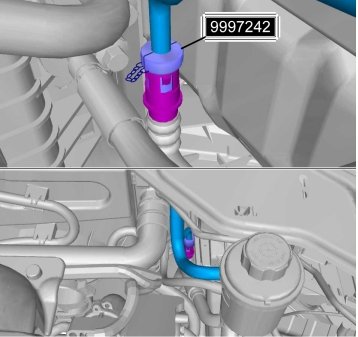

999 7242 Wrench 999 7242 Wrench









Warning! Be prepared to collect escaping fluid.





Installation

To install, reverse the removal procedure.

Perform power steering system, bleeding air Refer to: Power steering system, bleeding Service and Repair
