Signal Specification, Driver Information Module (DIM)

Signal specification, Driver information module (DIM)

General

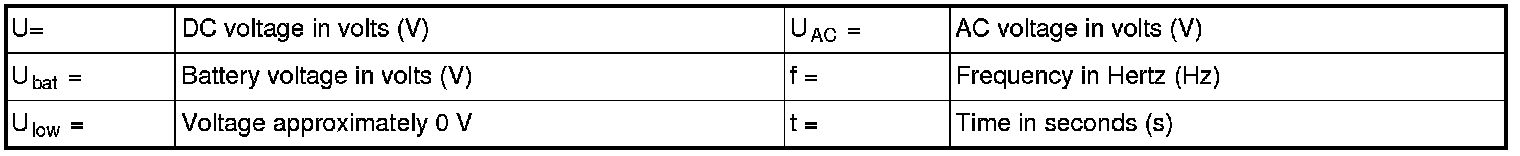

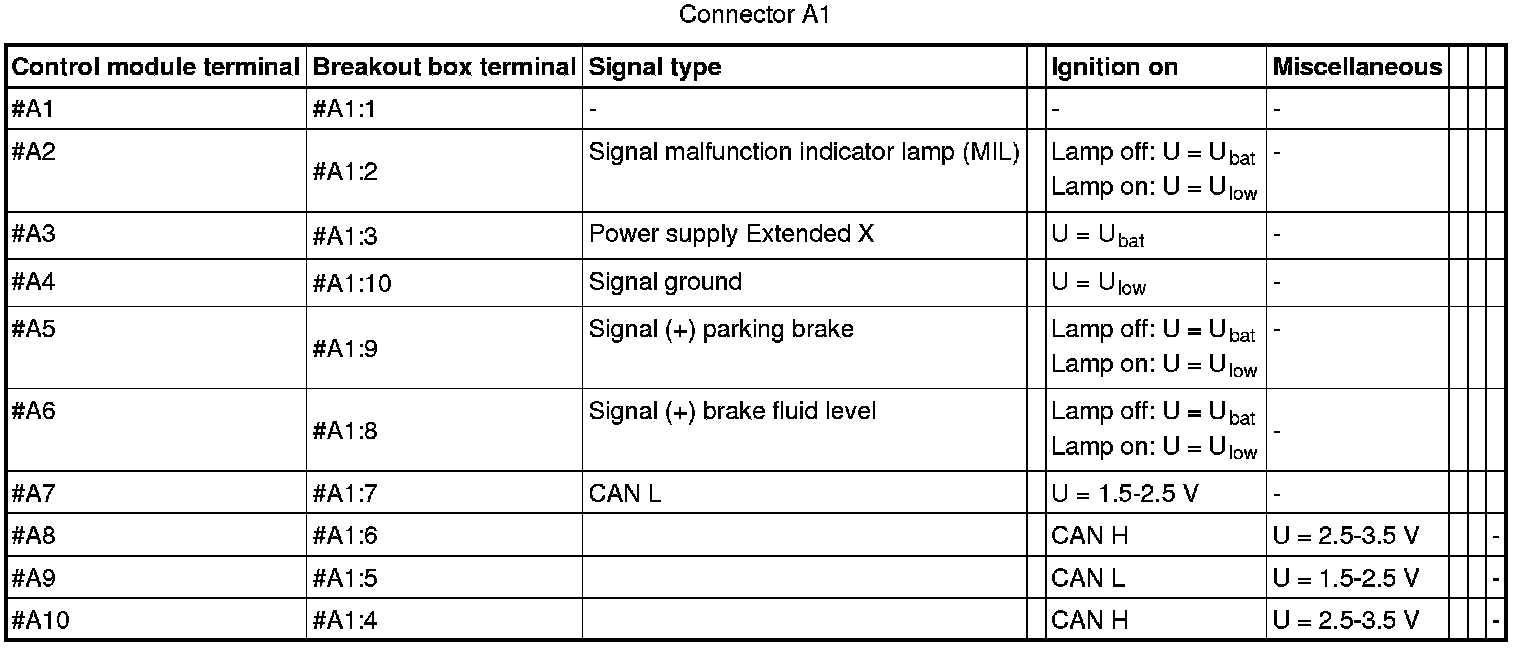

All the values given below apply between the respective connection (column 1) and signal ground (#A1 : 10). If this is not the case, it is indicated in brackets.

Note! It is important to connect the breakout box and check the ground terminals before taking readings.
