SMART KEY SYSTEM (for Entry Function)
>>
All Door Entry Lock/Unlock Functions and Wireless Functions do not Operate [12/2019 - 11/2023]
>>

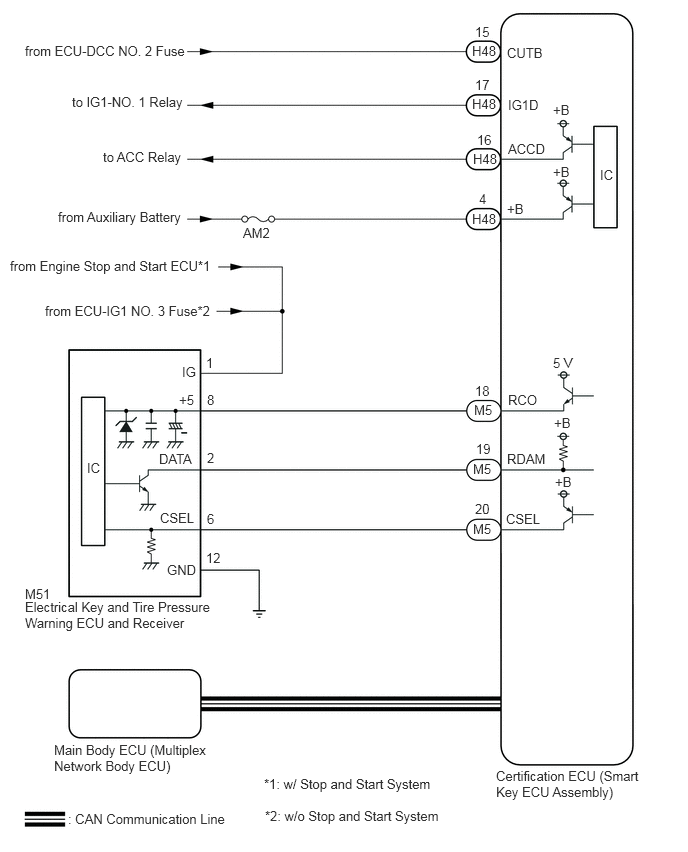

Wiring Diagram
All Door Entry Lock/Unlock Functions and Wireless Functions do not Operate [12/2019 - 11/2023]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
