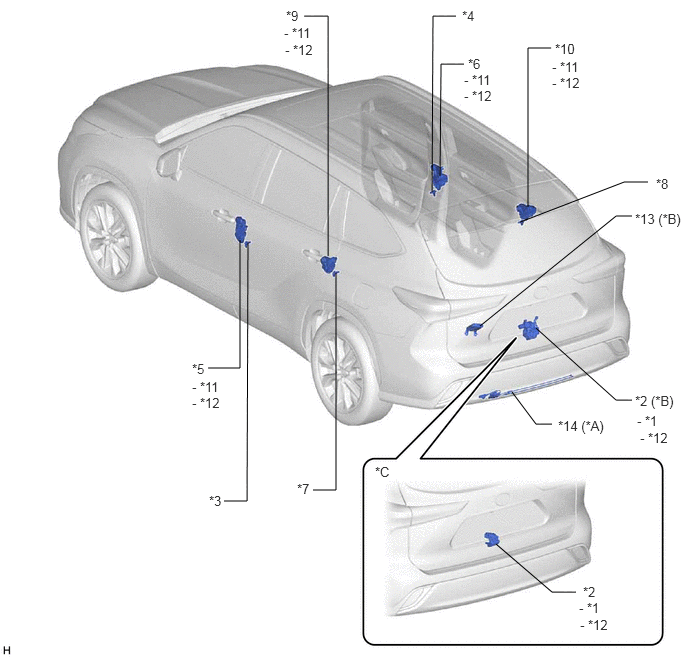

Parts Location [12/2019 - 11/2023]: Illustration
| *A | w/ Hands Free Power Back Door | *B | w/ Power Back Door System |
| *C | w/o Power Back Door System | - | - |
| *1 | BACK DOOR COURTESY LIGHT SWITCH | *2 | BACK DOOR LOCK WITH COURTESY LIGHT SWITCH ASSEMBLY |
| *3 | FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY (for LH) | *4 | FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY (for RH) |
| *5 | FRONT DOOR LOCK WITH MOTOR ASSEMBLY LH | *6 | FRONT DOOR LOCK WITH MOTOR ASSEMBLY RH |
| *7 | REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY (for LH) | *8 | REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY (for RH) |
| *9 | REAR DOOR LOCK WITH MOTOR ASSEMBLY LH | *10 | REAR DOOR LOCK WITH MOTOR ASSEMBLY RH |
| *11 | UNLOCK DETECTION SWITCH | *12 | DOOR LOCK MOTOR |
| *13 | MULTIPLEX NETWORK DOOR ECU | *14 | KICK DOOR CONTROL SENSOR |

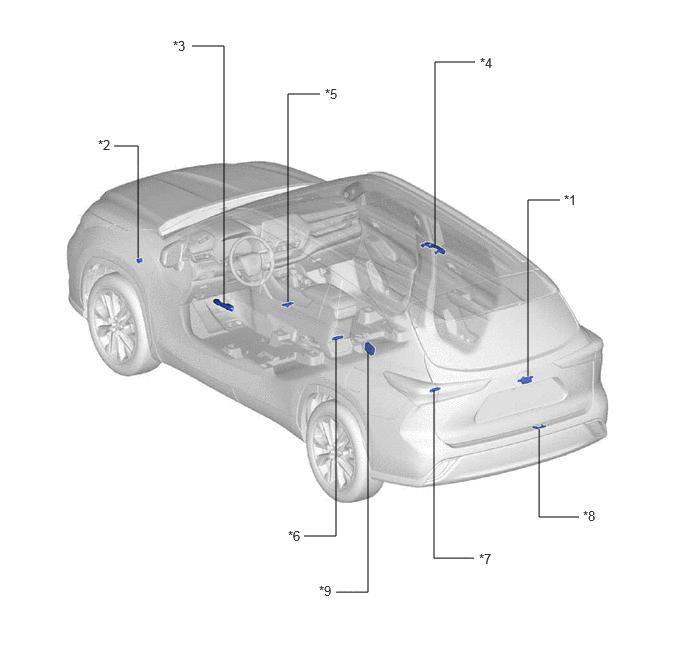

| *1 | BACK DOOR OPENER SWITCH ASSEMBLY - LOCK SWITCH - OPEN SWITCH |
*2 | WIRELESS DOOR LOCK BUZZER |
| *3 | FRONT DOOR OUTSIDE HANDLE ASSEMBLY (for Driver Door) - ELECTRICAL KEY ANTENNA - LOCK SENSOR - UNLOCK SENSOR |
*4 | FRONT DOOR OUTSIDE HANDLE ASSEMBLY (for Front Passenger Door) - ELECTRICAL KEY ANTENNA - LOCK SENSOR - UNLOCK SENSOR |
| *5 | NO. 1 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY (FRONT FLOOR) | *6 | NO. 2 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY (REAR FLOOR) |
| *7 | NO. 3 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY (INSIDE LUGGAGE COMPARTMENT) | *8 | ELECTRICAL KEY ANTENNA (OUTSIDE LUGGAGE COMPARTMENT) |
| *9 | ELECTRICAL KEY AND TIRE PRESSURE WARNING ECU AND RECEIVER | - | - |
