Smart Key System (For Start, Except HV) - Diagnostic Codes (1 Of 2)
>>
SMART KEY SYSTEM (for Start Function, Gasoline Model)
>>
DTC B2282: Vehicle Speed Signal Malfunction; DTC B2283: Vehicle Speed Sensor Malfunction [10/2022 - 11/2023]
>>

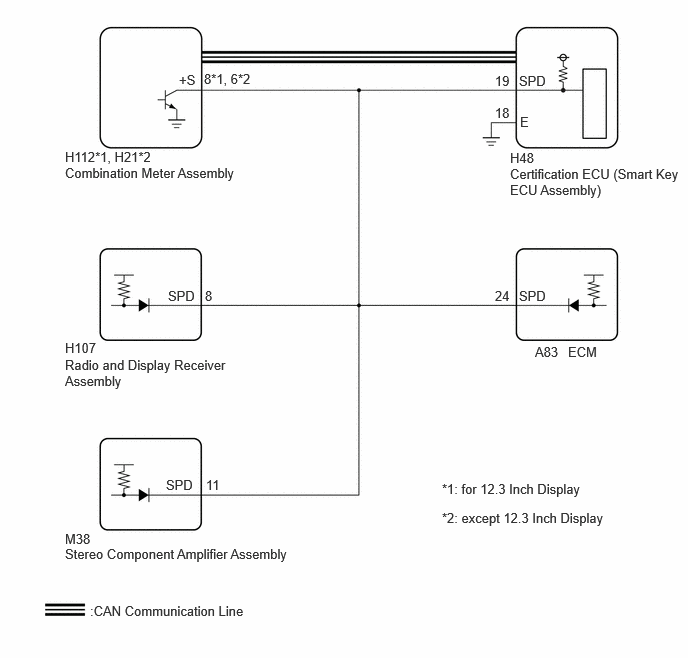

Wiring Diagram
DTC B2282: Vehicle Speed Signal Malfunction; DTC B2283: Vehicle Speed Sensor Malfunction [10/2022 - 11/2023]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
