SMART KEY SYSTEM (for Start Function, Gasoline Model)
>>
DTC B2285: Steering Lock Position Signal Circuit Malfunction [12/2019 - 10/2021]
>>
Wiring Diagram

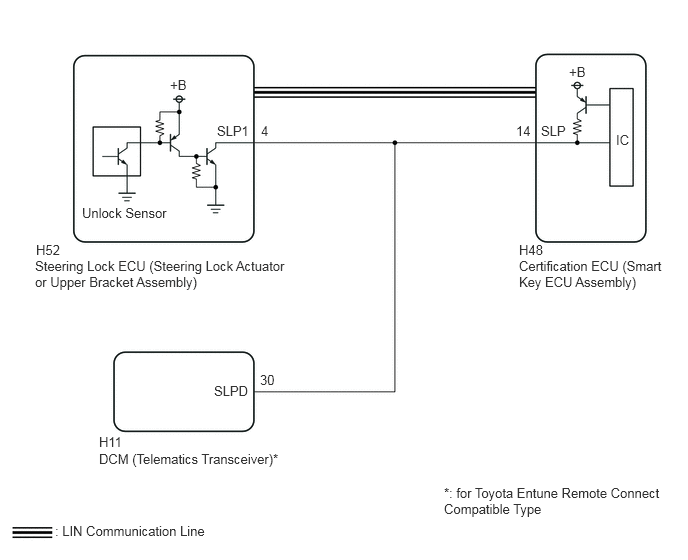

DTC B2285: Steering Lock Position Signal Circuit Malfunction [12/2019 - 10/2021]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
