SMART KEY SYSTEM (for Start Function, Gasoline Model)
>>
Engine does not Start [11/2023 - ]
>>

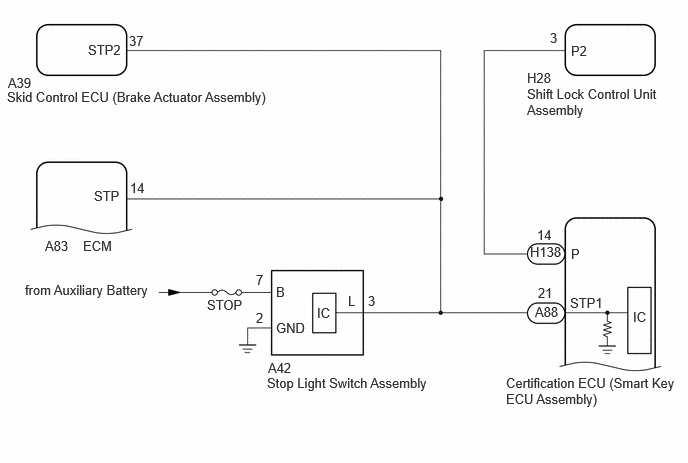

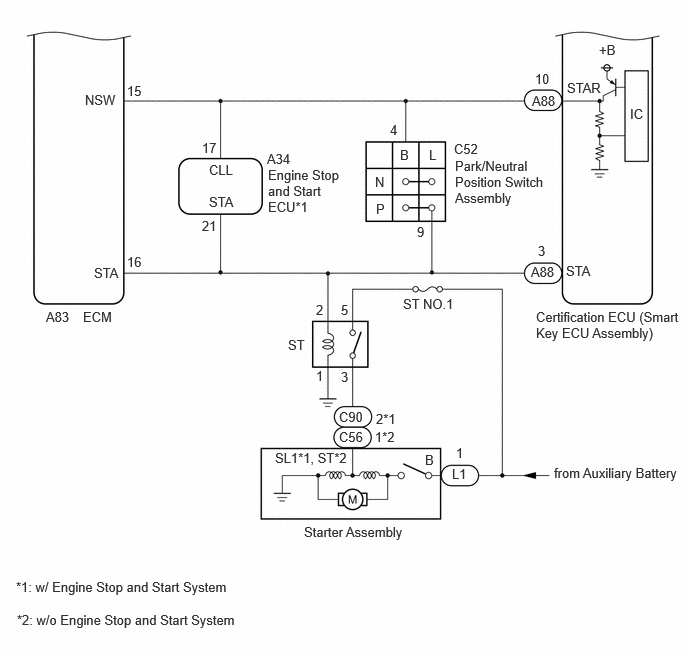

Wiring Diagram
Engine does not Start [11/2023 - ]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
