System Diagram [11/2023 - ]

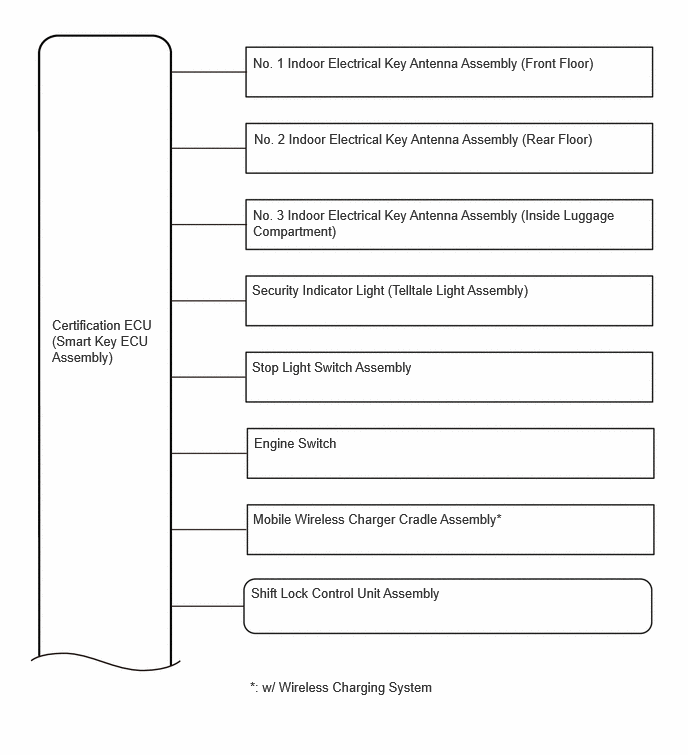

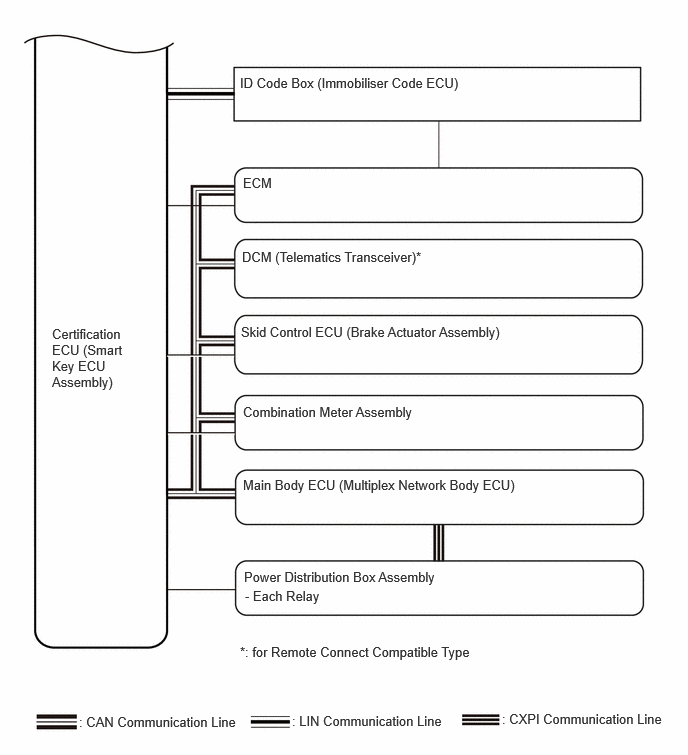

  1. SMART KEY SYSTEM (for Start Function)
    GTY1178416Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    GTY1123475Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. SMART KEY SYSTEM (for Entry Function)

    Refer to SYSTEM DIAGRAM [11/2023 - ]
