Home >> Toyota >> 2021 >> Highlander LE, 4WD >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Anti-Theft Systems >> Smart Key System (For Start, Except HV) - Symptom Tests (2 Of 2) >> SMART KEY SYSTEM (for Start Function, Gasoline Model) >> Power Source Mode does not Change to ON (IG) [12/2019 - 11/2023] >> Wiring Diagram

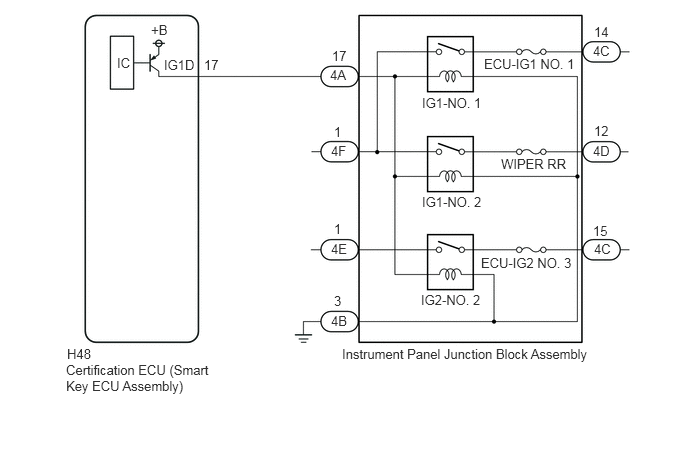

Power Source Mode does not Change to ON (IG) [12/2019 - 11/2023]: Wiring Diagram

GTY854969Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
