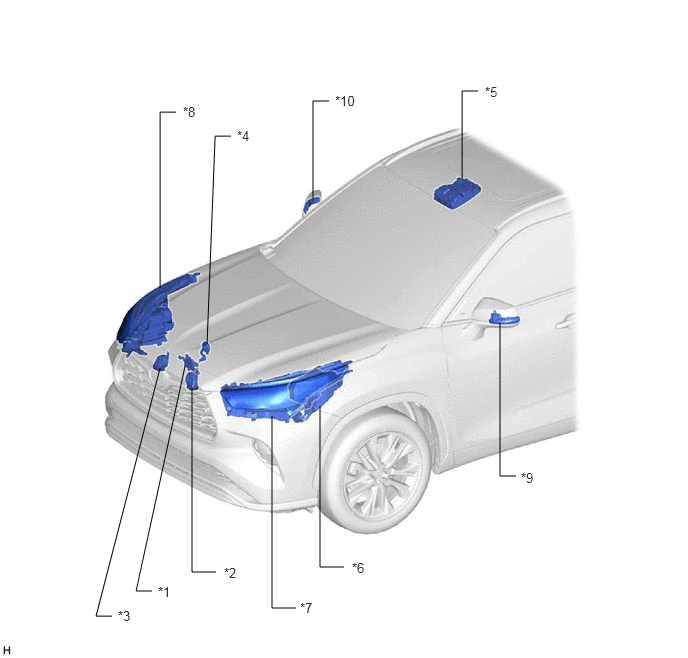

Parts Location [11/2023 - ]: Illustration
| *1 | HOOD LOCK ASSEMBLY - ENGINE HOOD COURTESY SWITCH |
*2 | LOW PITCHED HORN ASSEMBLY |
| *3 | HIGH PITCHED HORN ASSEMBLY | *4 | SECURITY HORN ASSEMBLY |
| *5 | MAP LIGHT ASSEMBLY - INTERIOR LIGHT |
*6 | NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY - S-HORN FUSE - S-HORN RELAY |
| *7 | HEADLIGHT ASSEMBLY LH - TURN SIGNAL LIGHT - LOW BEAM |
*8 | HEADLIGHT ASSEMBLY RH - TURN SIGNAL LIGHT - LOW BEAM |
| *9 | SIDE TURN SIGNAL LIGHT ASSEMBLY LH | *10 | SIDE TURN SIGNAL LIGHT ASSEMBLY RH |

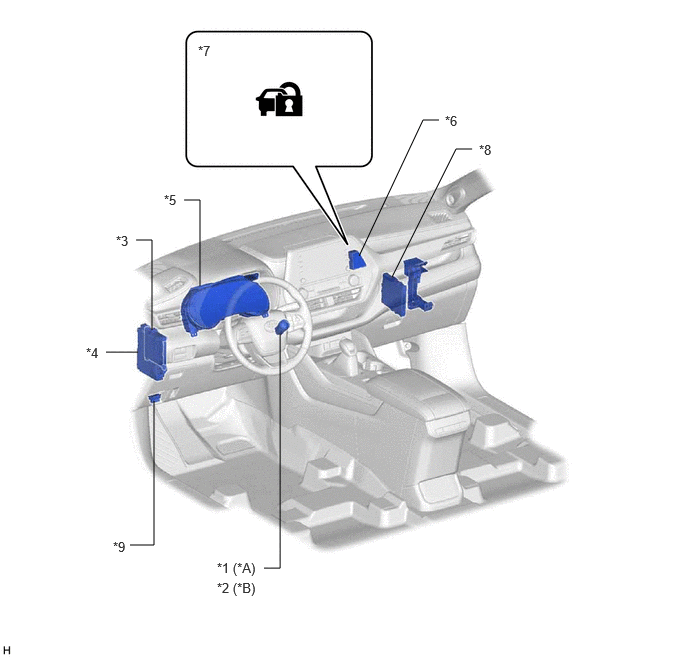

| *A | for HV Model | *B | for Gasoline Model |
| *1 | POWER SWITCH | *2 | ENGINE SWITCH |
| *3 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *4 | POWER DISTRIBUTION BOX ASSEMBLY - HORN FUSE - HORN RELAY |
| *5 | COMBINATION METER ASSEMBLY | *6 | TELLTALE LIGHT ASSEMBLY |
| *7 | SECURITY INDICATOR LIGHT | *8 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) |
| *9 | DLC3 | - | - |

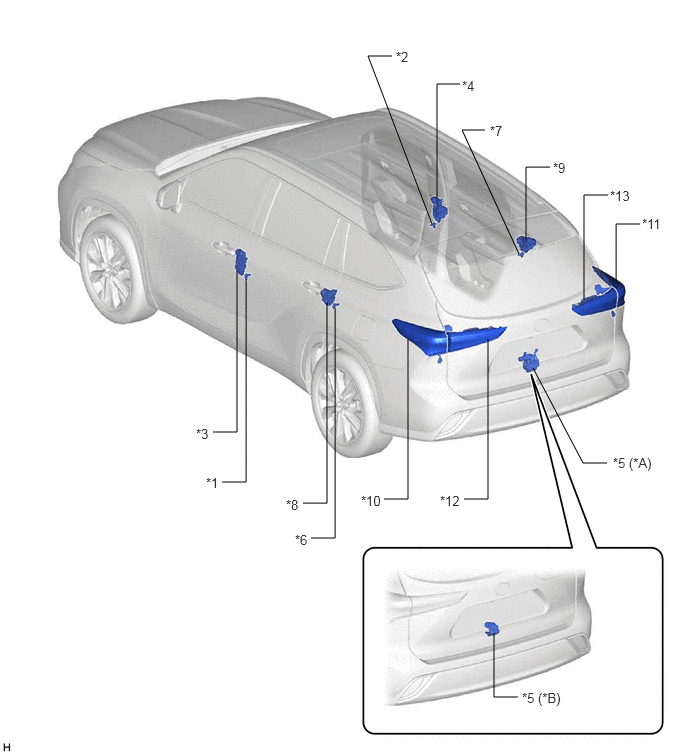

| *A | w/ Power Back Door System | *B | w/o Power Back Door System |
| *1 | FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY (for LH) | *2 | FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY (for RH) |
| *3 | FRONT DOOR LOCK WITH MOTOR ASSEMBLY LH | *4 | FRONT DOOR LOCK WITH MOTOR ASSEMBLY RH |
| *5 | BACK DOOR LOCK WITH COURTESY LIGHT SWITCH ASSEMBLY | *6 | REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY (for LH) |
| *7 | REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY (for RH) | *8 | REAR DOOR LOCK WITH MOTOR ASSEMBLY LH |
| *9 | REAR DOOR LOCK WITH MOTOR ASSEMBLY RH | *10 | REAR COMBINATION LIGHT ASSEMBLY LH - TURN SIGNAL LIGHT |
| *11 | REAR COMBINATION LIGHT ASSEMBLY RH - TURN SIGNAL LIGHT |
*12 | REAR LIGHT ASSEMBLY LH |
| *13 | REAR LIGHT ASSEMBLY RH | - | - |
