DSD Information System

Home >> Toyota >> 2021 >> Highlander LE, 4WD >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Anti-Theft Systems >> Theft Deterrent System - Diagnostics & Circuit Tests >> Theft Deterrent System >> Horn Circuit [11/2023 - ] >> Wiring Diagram

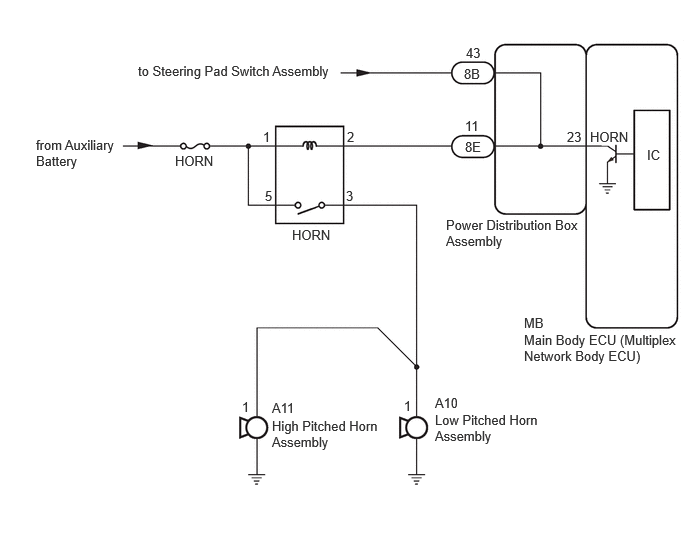

Horn Circuit [11/2023 - ]: Wiring Diagram

GTY1178042

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
