Security Horn Circuit [12/2019 - 11/2023]: Procedure

1. Perform the Active Test according to the display on the GTS.

   Body Electrical > Main Body > Active Test

   Tester Display	Measurement Item	Control Range	Diagnostic Note
   Security Horn	Security horn Assembly	OFF/ON	-

   Body Electrical > Main Body > Active Test

   Tester Display
   Security Horn

   OK

   The security horn assembly sounds and stops correctly when operated through the GTS.

   Result

   Proceed to
   OK
   NG

Result:

OK

REPLACE MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU). Refer to  REMOVAL [12/2019 - 10/2022]  , or refer to  REMOVAL [10/2022 - 11/2023]

Result:

NG

See step  2

Refer to INSPECTION [12/2019 - ]

Result

Result:

NG

REPLACE SECURITY HORN ASSEMBLY. Refer to  REMOVAL [12/2019 - ]

Result:

OK

See step  3

1. Remove the S-HORN relay from the No. 7 relay block.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	S-HORN Relay

2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   3 - 5	Auxiliary battery voltage not applied between terminals 1 and 2	10 kΩ or higher
   3 - 5	Auxiliary battery voltage applied between terminals 1 and 2	Below 1 Ω

   Result

   Proceed to
   OK
   NG

Result:

NG

REPLACE S-HORN RELAY

Result:

OK

See step  4

1. Remove the main body ECU (multiplex network body ECU).

   Refer to REMOVAL [12/2019 - 10/2022] , or refer to REMOVAL [10/2022 - 11/2023]

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

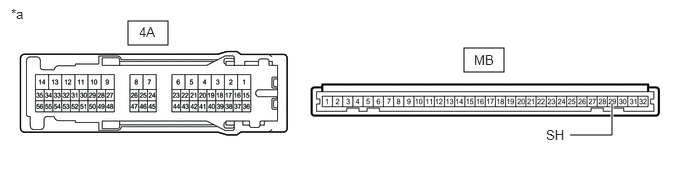

   *a

   Component without harness connected (Instrument Panel Junction Block Assembly)

   -

   -

2. Disconnect the 4A instrument panel junction block assembly connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   4A-20 - MB-29 (SH)	Always	Below 1 Ω

   Result

   Proceed to
   OK
   NG

Result:

NG

REPLACE INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY. Refer to  REMOVAL [12/2019 - 10/2022]  , or refer to  REMOVAL [10/2022 - 11/2023]

Result:

OK

See step  5

1. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Condition	Specified Condition
   S-HORN relay holder terminal 1 - Body ground	Ignition switch off*1 Always*2	11 to 14 V
   S-HORN relay holder terminal 5 - Body ground	Ignition switch off*1 Always*2	11 to 14 V

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	No. 7 Relay Block

   1. *1: for HV Model
   2. *2: for Gasoline Model

   Result

   Proceed to
   OK
   NG

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:

OK

See step  6

1. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   S-HORN relay holder terminal 3 - A20-1	Always	Below 1 Ω
   S-HORN relay holder terminal 3 or A20-1 - Other terminals and body ground	Always	10 kΩ or higher

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	No. 7 Relay Block

   Result

   Proceed to
   OK
   NG

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:

OK

See step  7

1. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   S-HORN relay holder terminal 2 - 4A-20	Always	Below 1 Ω
   S-HORN relay holder terminal 2 or 4A-20 - Other terminals and body ground	Always	10 kΩ or higher

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	No. 7 Relay Block

   Result

   Proceed to
   OK
   NG

Result:

OK

REPLACE MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU). Refer to  REMOVAL [12/2019 - 10/2022]  , or refer to  REMOVAL [10/2022 - 11/2023]

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
