Removal [12/2019 - ]: Procedure

  1. REMOVE REAR NO. 2 SEAT ASSEMBLY

    Refer to REMOVAL [12/2019 - ]

  2. REMOVE NO. 3 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY

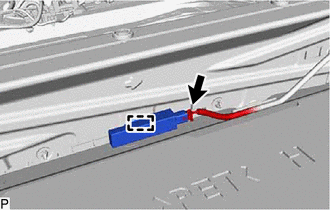

    1. Disengage the clamp.
      GTY902840Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connector to remove the No. 3 indoor electrical key antenna assembly.
      NOTE:

      Be careful when removing the No. 3 indoor electrical key antenna assembly. If the No. 3 indoor electrical key antenna assembly is dropped, replace it with a new one.
