Inspection [12/2019 - ]: Procedure

  1. INSPECT ENGINE HOOD COURTESY SWITCH (HOOD LOCK ASSEMBLY)
    1. Measure the resistance according to the value(s) in the table below.

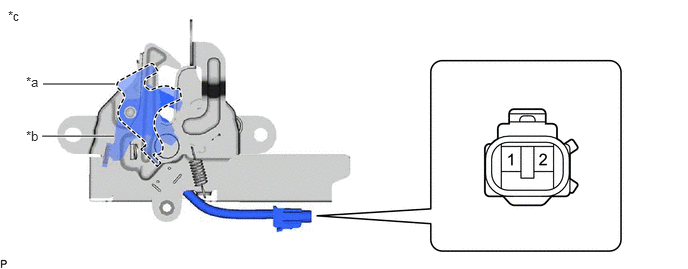

      GTY883976Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Open *b Lock
      *c Component without harness connected
      (Engine Hood Courtesy Switch (Hood Lock Assembly))      		 - -

      Standard Resistance

      Tester Connection Condition Specified Condition
      1 - 2 Open 10 kΩ or higher
      Locked Below 1 Ω

      If the result is not as specified, replace the engine hood courtesy switch (hood lock assembly).
