Removal [12/2019 - ]: Procedure

  1. REMOVE SECURITY HORN ASSEMBLY

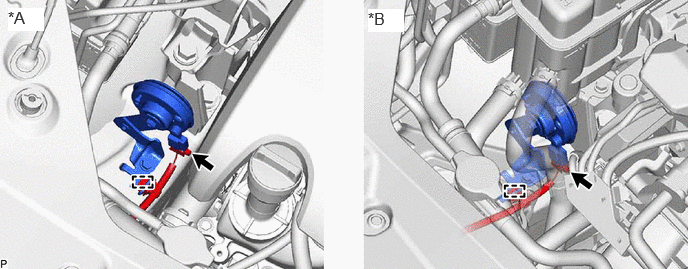

    1. Disconnect the connector.
      GTY914889Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A for Gasoline Model *B for HV Model

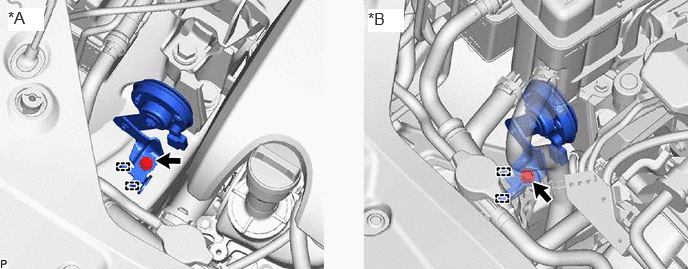

    2. Disengage the clamp.
    3. Remove the bolt.
      GTY846336Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A for Gasoline Model *B for HV Model
    4. Disengage the 2 guides to remove the security horn assembly.
