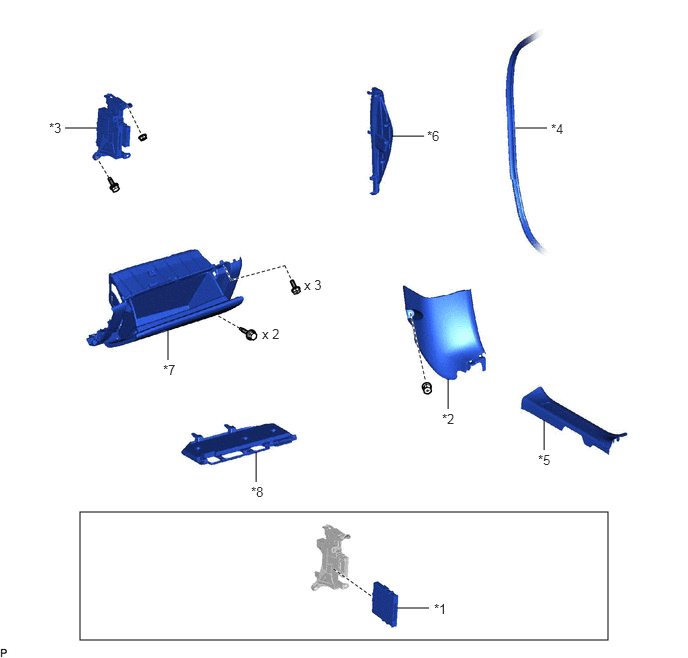

Components [12/2019 - ]
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) | *2 | COWL SIDE TRIM SUB-ASSEMBLY RH |
| *3 | ECU INTEGRATION BOX RH | *4 | FRONT DOOR OPENING TRIM WEATHERSTRIP RH |
| *5 | FRONT DOOR SCUFF PLATE RH | *6 | INSTRUMENT PANEL FINISH END PANEL RH |
| *7 | LOWER INSTRUMENT PANEL SUB-ASSEMBLY | *8 | NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY |
