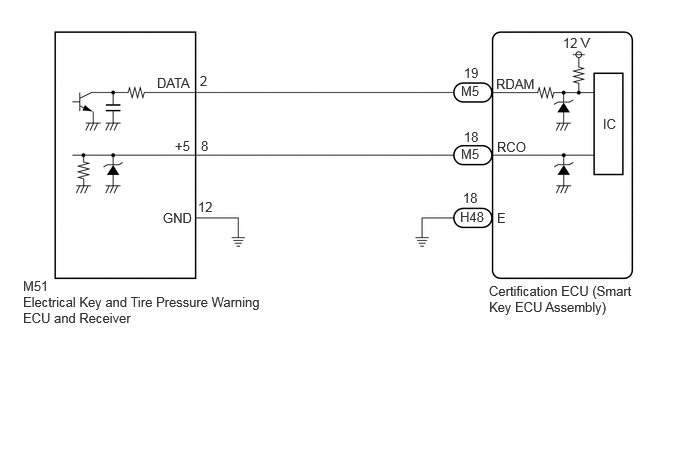

DTC B1242: Wireless Door Lock Tuner Circuit Malfunction [12/2019 - 11/2023]: Wiring Diagram

GTY881106

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
